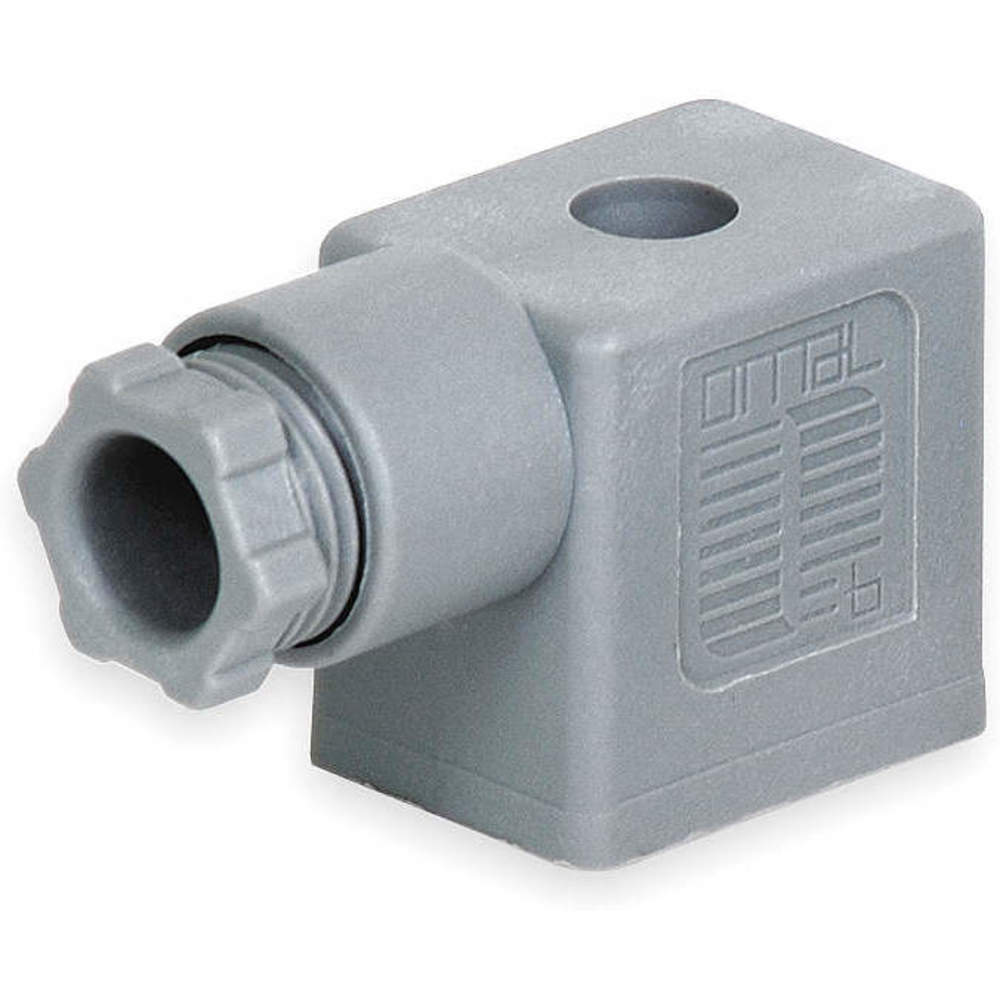

PARKER 230-363 Solenoid Coil Connector

Product Description

The PARKER 230-363 is a solenoid coil connector suitable for Numatics L and Mark 3 series. This connector has a twenty-two millimeter DIN form and uses a plug-in connection. It features strain relief and meets NEMA 4 standards, ensuring durability in various environments. The unit does not include indicator lights and provides leads for easy installation.

• Compatible with Numatics L and Mark 3 series
• Features a twenty-two millimeter DIN connection
• Includes strain relief for reliable performance

Product Highlights

This connector is designed for solenoid valves and offers a modular design, making electrical connections straightforward for hydraulic and pneumatic applications.

Product Information

Standard Information

• Product Type: Solenoid Coil Connector
• Compatible Brand: Numatics

Technical Specifications

• MPN: 230-363
• Compatible Series: L, Mark 3
• Connection Type: Plug In
• DIN Coil Termination: DIN 43650 Form B
• Coil Size: 22 mm
• Includes Leads: Yes
• Indicator Light Included: No
• Operating Temperature Maximum: 180°F
• Overall Height: 1 3/16 inches
• Overall Length: 1 9/16 inches
• Overall Width: 13/16 inches
• Plug Type: 2 Pin
• Standards: NEMA 4
• Strain Relief: Yes
• Voltage: 24-220V AC
