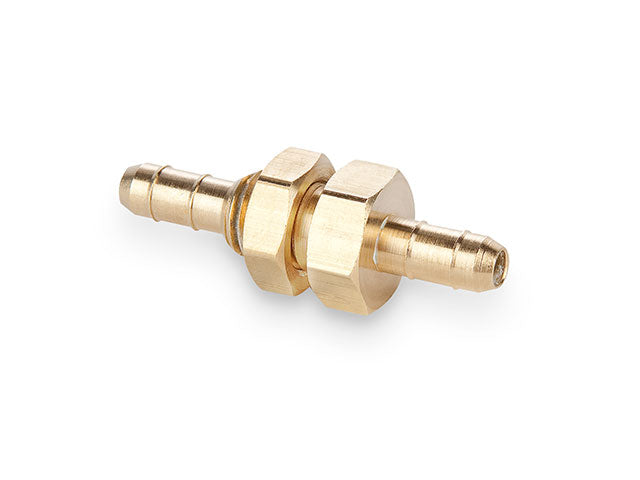

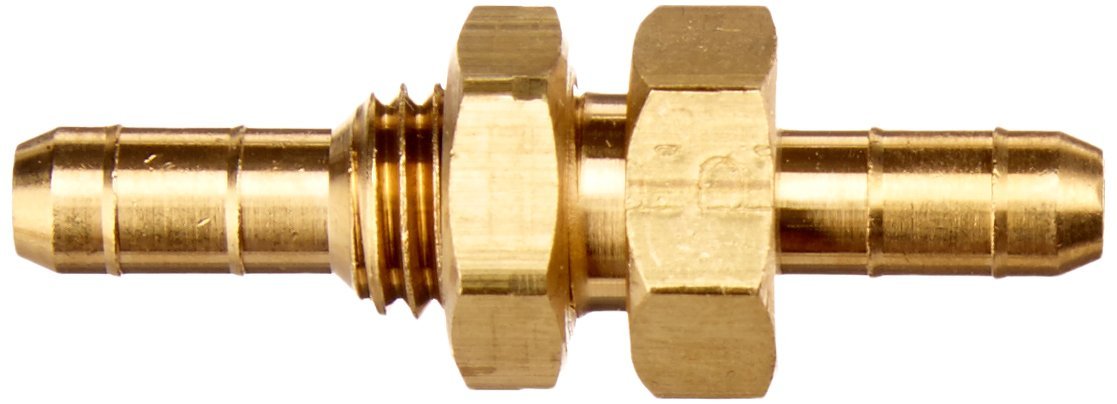

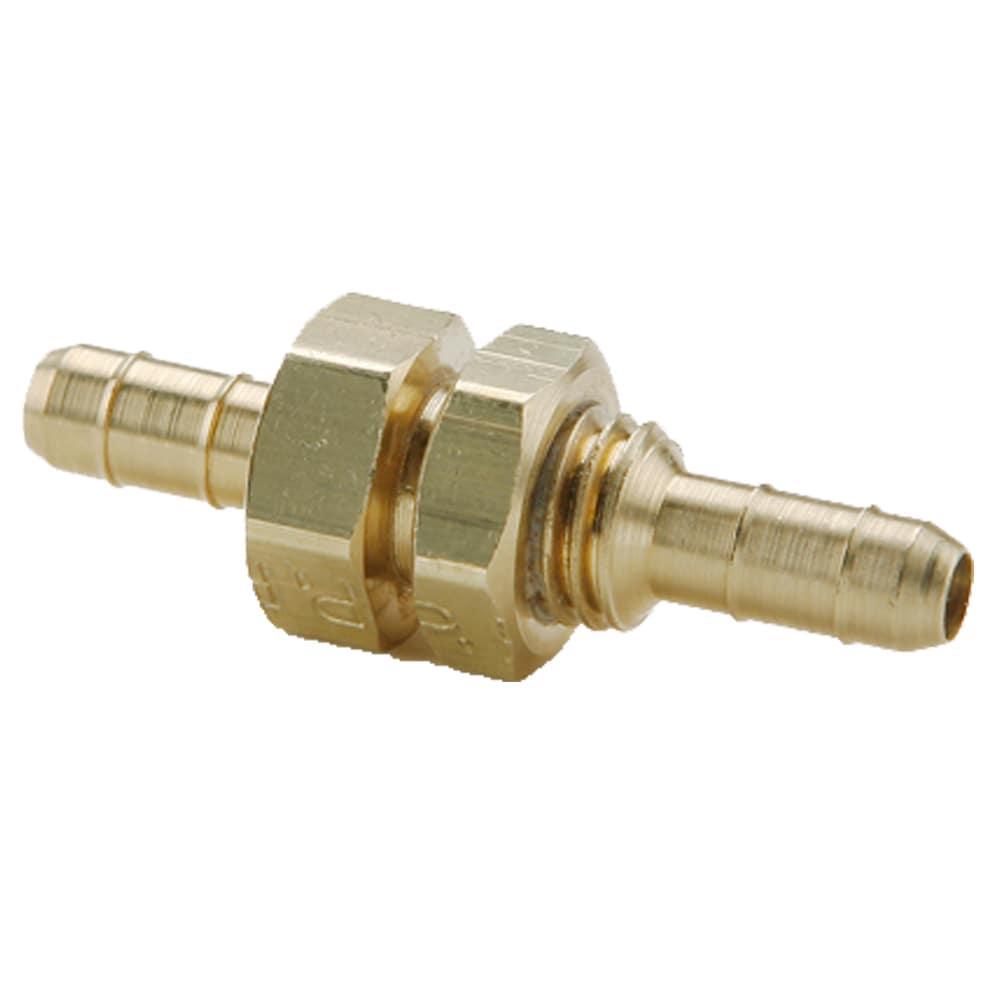

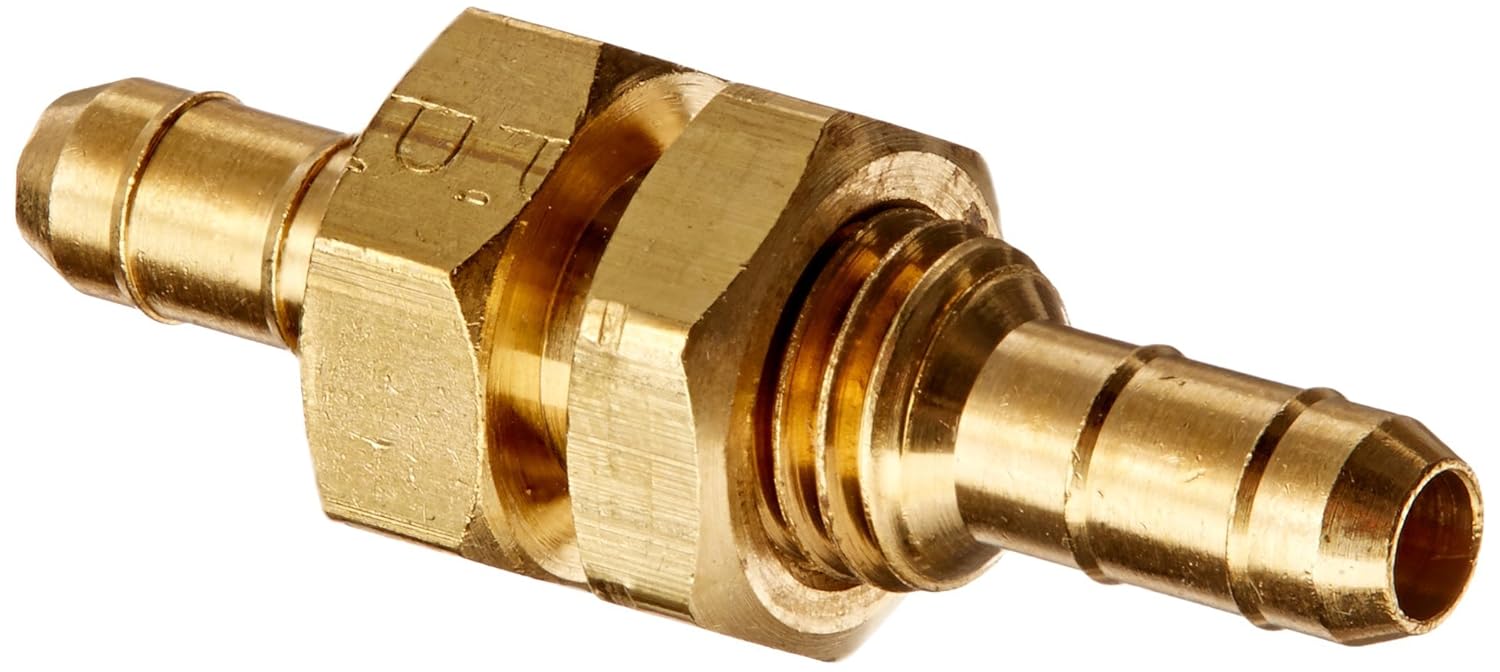

Parker 22bh-4-4 dubl-barb brass body bulkhead union fitting 1/4 inches barb tube x 1/4 inches barb tube

Product Description

The PARKER 22BH-4-4 is a Dubl-Barb brass body bulkhead union fitting designed for connecting 1/4 inch barb tubes. This pneumatic fitting operates up to 150 psi and within a temperature range of -65 to 90 degrees F, making it suitable for various industrial control applications with polyethylene tubing.

• Compact design
• Excellent vibration resistance
• Economical push-on fitting

Product Highlights

This brass Dubl-Barb fitting provides a compact and economical push-on solution for polyethylene tubing connections.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: 22BH-4-4
• Country of Origin: USA

Technical Specifications

• Material: Brass
• Thread Type: NPT
• Connection Type: Barb Tube X Barb Tube
• Exterior Finish: Brass
• Number of Pieces: 1
• End Connection Style: Barb
• Fitting Type: Bulkhead
• Nominal Connection Size: 1/4 in
• Maximum Pressure Rating: 150 psi
• Operating Temperature Range: -65 to 90 deg F
• Product Type: Pneumatic
• Manufacturer: Parker Hannifin Corporation
• Connection Size: 1/4 inches x 1/4 inches
• Outer Diameter 1: 1/4 Inch
• Outer Diameter 2: 1/4 Inch
• Inner Diameter 1: 0.170 Inch
• Inner Diameter 2: 0.170 Inch
• Trade Name: Dubl-Barb
• Series: Dubl-Barb
• Configuration: Barb to Barb
• Sub-Configuration: Union Bulkhead
• Division: Fluid Systems Connector (Brass Products)
• Group: Fluid Connector
• Compatible Tube Material: Polyethylene
• Application: Industrial Controls
