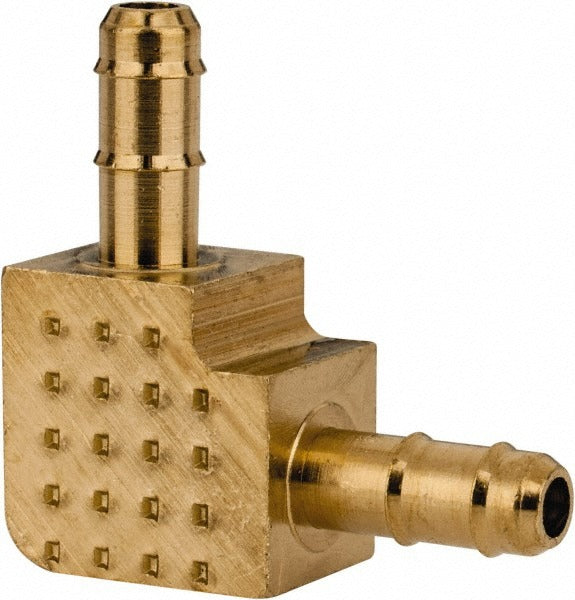

Parker 225-5/32 Barbed Tube Union Elbow 5/32 Inch

Product Description

The PARKER 225-5/32 is a barbed tube union elbow fitting designed to join two lengths of flexible tubing at a 90-degree angle. Constructed from brass, it provides reliable sealing and corrosion resistance in pneumatic and fluid transfer lines. The barbed design creates a secure push-on connection without the need for threaded tools, making it a fast, field-serviceable option. The fitting accepts tubing with an outside diameter of 5/32 inches and an inside diameter of 0.096 inches. It is a single-piece unit sold individually and is a common consumable item for technicians working on small-diameter tubing assemblies.

This fitting is suited for light-duty pneumatic, instrumentation, and low-pressure fluid transfer applications where a compact 90-degree change in tubing direction is required. Typical install scenarios include control system tubing runs, HVAC equipment pneumatic controls, and instrument air lines. The brass construction makes it appropriate for applications where plastic fittings lack the mechanical durability needed for the environment.

Key Features

• Brass construction for corrosion resistance and durability in fluid and pneumatic service
• Barbed ends allow tool-free push-on connection to flexible tubing
• Union elbow design joins two tubing segments at a 90-degree angle
• Compatible with 5/32 inch OD flexible tubing with 0.096 inch ID
• Compact form factor suited for tight routing spaces in equipment enclosures

Compatibility

Designed as an OEM-style replacement or service fitting for small-diameter flexible tubing assemblies with a 5/32 inch outside diameter and 0.096 inch inside diameter.

Installation Notes

Installation is performed by technicians working on pneumatic control or low-pressure fluid transfer systems. Before servicing any tubing connection, relieve all system pressure and isolate the circuit. Push tubing fully onto each barb to ensure a leak-free seal, and verify seating before restoring pressure. Clamp-style hose clamps may be used to improve retention on barbed fittings in higher-pressure or vibration-prone installations.
