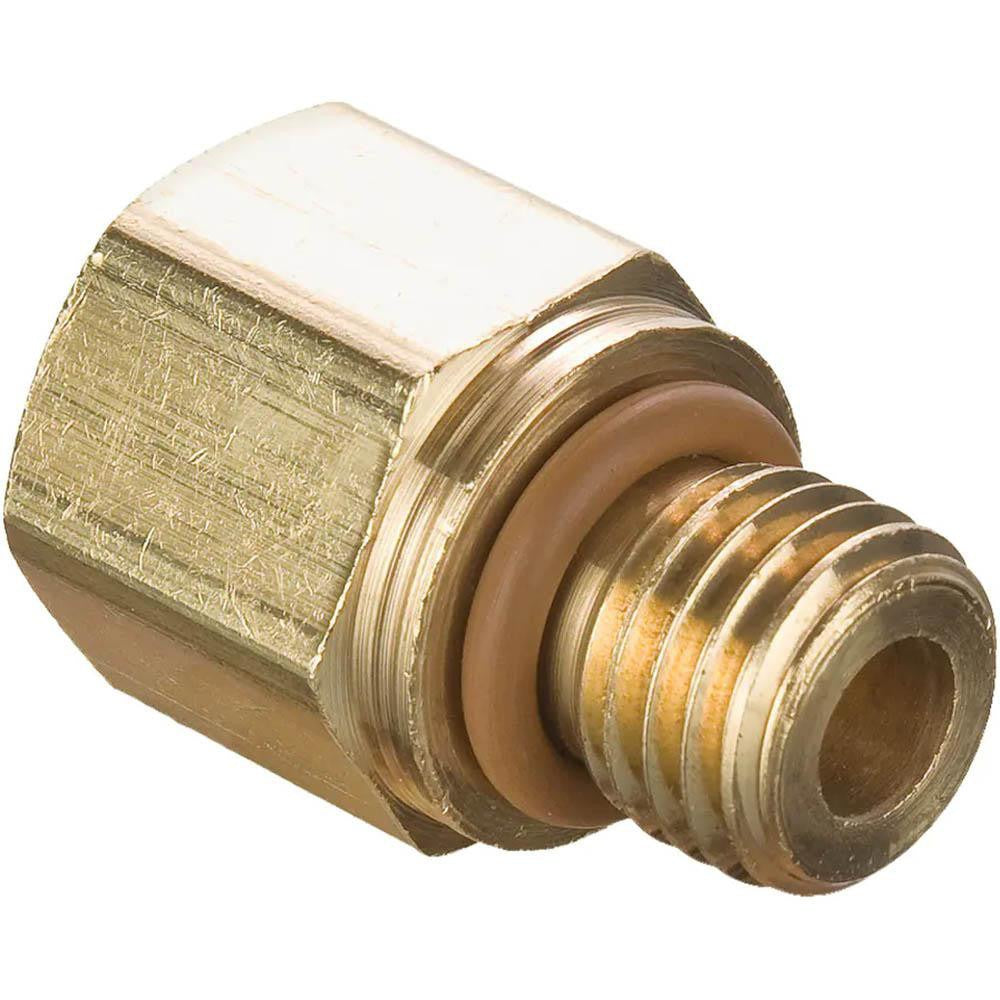

Parker 222P-2-MI10 Brass Iso Port Adapter 1000 Psi

Product Description

The PARKER 222P-2-MI10 is a brass ISO port adapter designed to connect 1/8-27 NPTF threads to M10x1 metric ports in hydraulic and fluid power systems. Rated to 1,000 psi working pressure, it provides a leak-resistant transition between inch-standard and metric threaded connections. The adapter conforms to ISO 6149-3 and SAE J2244-3 standards, making it a suitable choice for OEM equipment and field service work where mixed thread standards are common. Licensed plumbers, hydraulic technicians, and fluid power specialists are the primary installers of this fitting.

This adapter is used in hydraulic circuits, pneumatic systems, and fluid power assemblies where NPTF pipe threads must mate to ISO metric port connections. Typical applications include industrial machinery, mobile hydraulic equipment, and instrumentation manifolds. The M10x1 metric thread is a standard ISO 6149-3 port size, and the 1/8-27 NPTF end provides a dry-seal thread connection on the pipe side. The compact size and low weight make it practical for tight-clearance installations where space around a port is limited.

Key Features

• 1,000 psi maximum working pressure for hydraulic and pneumatic service
• NPTF dry-seal thread on pipe side eliminates the need for thread sealant tape in many installations
• M10x1 metric port connection conforms to ISO 6149-3 and SAE J2244-3 standards
• Brass construction offers corrosion resistance in fluid power and instrumentation applications
• Rated for minimum working temperature of -65 degrees F for cold-environment service
• Compact, low-weight design at 0.03 pounds suits tight-clearance installations

Compatibility

Designed as an OEM-style adapter for hydraulic, pneumatic, and fluid power systems requiring a transition from 1/8-27 NPTF pipe thread to M10x1 ISO metric ports per ISO 6149-3 and SAE J2244-3.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Depressurize and isolate the system fully before removing or installing any fitting. NPTF dry-seal threads are designed to seal on the threads themselves, but verify system requirements before applying additional sealant. Torque to the equipment manufacturer's specification for M10x1 ISO port fittings; do not overtighten brass fittings into cast or aluminum ports.
