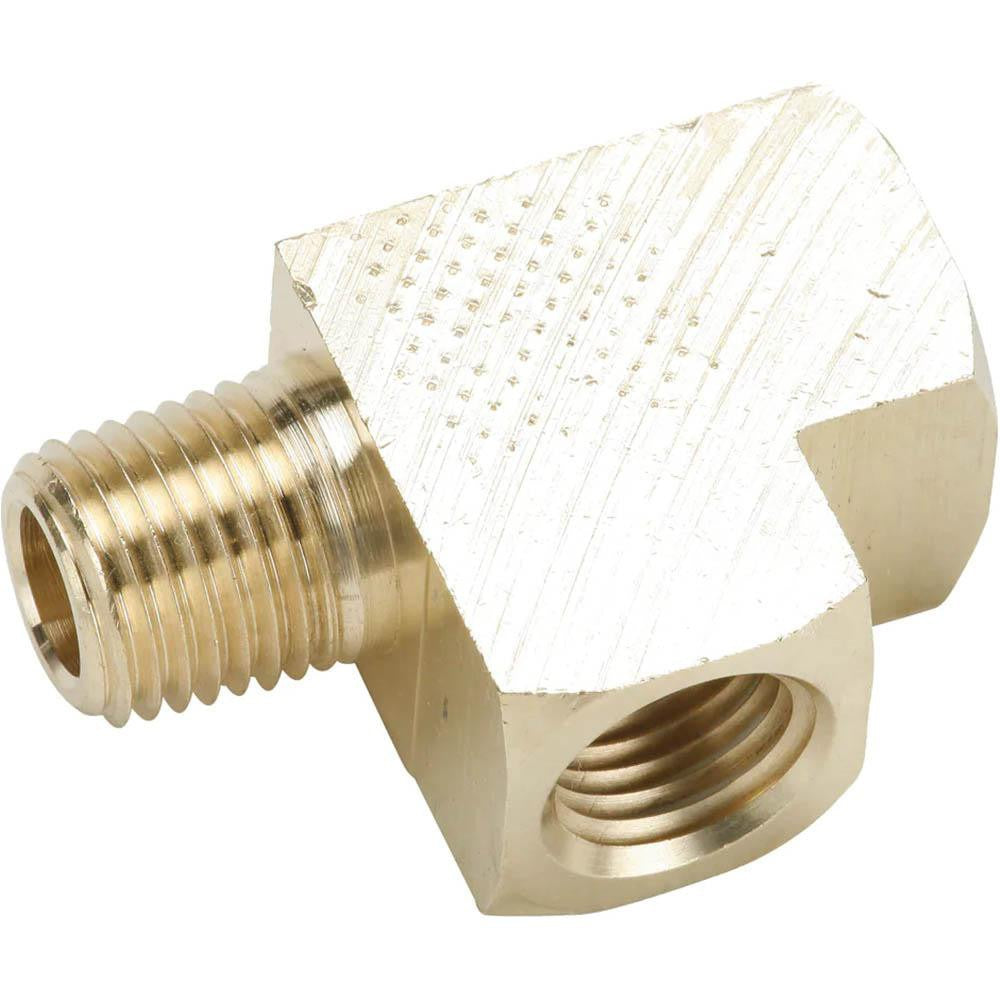

Parker 2225P-12 Street Tee 3/4 Inch Mnptf X Fnptf

Product Description

The PARKER 2225P-12 is an industrial pipe street tee fitting designed for threaded pipe assemblies in hydraulic, pneumatic, and fluid transfer systems. It features a 3/4 inch male NPT tapered (MNPTF) run connection and a 3/4 inch female NPT tapered (FNPTF) branch connection, allowing a tee to be installed directly into a threaded port or fitting without a separate nipple. Rated to 1,000 psi maximum working pressure, this fitting handles a wide service temperature range from -65 degrees F to 250 degrees F. Licensed HVAC technicians, pipefitters, millwrights, and plumbing professionals install this type of fitting in industrial and commercial piping runs.

The 2225P-12 street tee is suited for industrial piping applications where space-efficient branch connections are needed in pressurized fluid or gas lines. Its MNPTF x FNPTF configuration allows direct thread engagement into a female-ported component, eliminating an additional nipple and reducing overall assembly length. Typical use cases include branch takeoffs in compressed air headers, hydraulic manifolds, and industrial water or oil distribution lines. The fitting meets SAE J530 and SAE J531 standards, making it appropriate for use in regulated industrial fluid power systems.

Key Features

• 1,000 psi maximum working pressure rating for demanding industrial service
• 3/4 inch MNPTF x FNPTF connection type for direct thread-to-port installation
• Operating temperature range of -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards for industrial fluid fittings
• Street tee design eliminates the need for a separate nipple at the branch point

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial threaded pipe systems using 3/4 inch NPT connections rated to 1,000 psi or below.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumbing professional in accordance with applicable codes such as the IPC or IFGC. Depressurize and isolate the system completely before removing or installing any threaded fittings. Apply appropriate thread sealant to the male threads per the system fluid compatibility requirements. Do not overtighten tapered NPT connections, as this can crack fittings or distort sealing surfaces.
