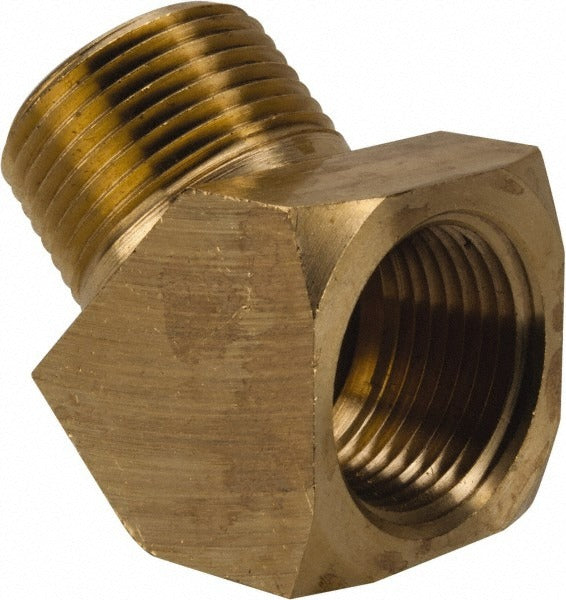

Parker 2214P-12-12 45 Deg Street Elbow 3/4 in Mnptf X Fnptf

Product Description

The PARKER 2214P-12-12 is a 45-degree street elbow fitting designed for industrial pipe systems requiring directional changes in pressurized fluid or air lines. It features a 3/4 inch male NPTF thread on one end and a 3/4 inch female NPTF thread on the other, allowing it to thread directly into a pipe or fitting without a coupling. Rated to 1,000 psi maximum working pressure, it handles a wide service temperature range from -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting in compressed air, hydraulic, and fluid conveyance applications.

This fitting is suited for residential and commercial installations where a 45-degree angular offset is needed in a piping run. The MNPTF x FNPTF configuration makes it a street-style elbow, which threads male-end-first directly into a female-threaded port, reducing the total number of connections in a line. Typical use cases include compressed air distribution, hydraulic lines, and general-purpose industrial plumbing where space is limited and a compact directional change is required.

Key Features

• 45-degree street elbow geometry for compact directional changes in tight spaces
• 3/4 inch MNPTF x FNPTF connection eliminates need for an additional coupling
• 1,000 psi maximum working pressure rating for demanding industrial service
• Wide temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 3/4 inch NPTF threaded connections rated to 1,000 psi.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and IFGC codes. Depressurize and isolate the line completely before removing or installing any threaded fittings. Apply appropriate thread sealant to the male NPTF threads before assembly. Do not overtighten; use a calibrated torque wrench appropriate for the pipe size and material.
