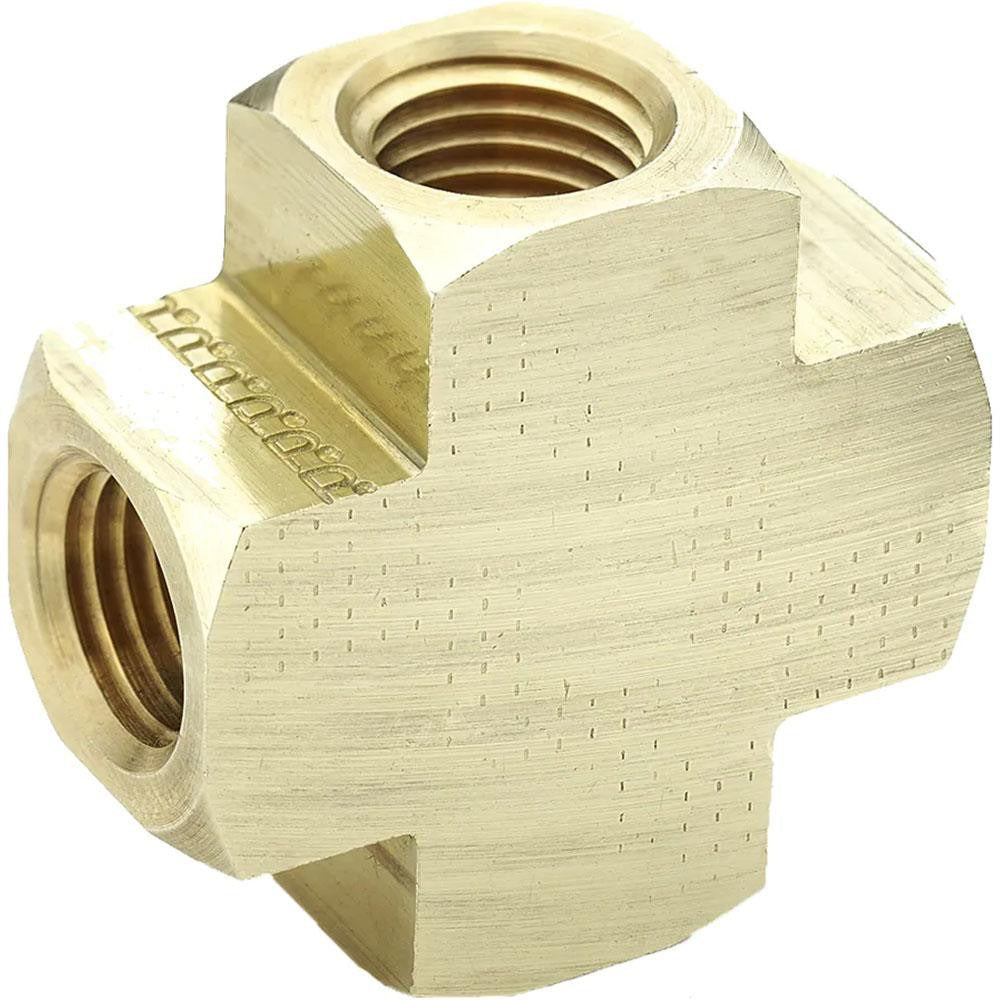

Parker 2205P-4 Female Cross Fitting 1/4 in Fnptf

Product Description

The PARKER 2205P-4 is a female cross pipe fitting designed for industrial fluid and pneumatic systems requiring a four-way connection point. This fitting uses female National Pipe Taper Fuel (FNPTF) threads on all four ports at a 1/4 inch thread size, allowing a single branch point to distribute or collect flow in multiple directions. Rated to 1,000 psi maximum working pressure, it handles demanding service conditions. The operating temperature range spans -65 degrees F to 250 degrees F, making it suitable for both low-temperature and elevated-temperature fluid system applications. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This fitting is used in industrial piping systems where a cross-pattern branch connection is required. Common applications include hydraulic lines, compressed air distribution, fuel systems, and general fluid transfer plumbing in manufacturing, maintenance, and process environments. The FNPTF thread form provides a pressure-tight seal at the thread interface, which is particularly suited to fuel and fluid service where leak-free performance is critical. It is appropriate for both new installations and repair work on existing 1/4 inch pipe systems operating within its rated pressure and temperature envelope.

Key Features

• Four-way female cross configuration for multi-directional flow branching
• 1/4 inch FNPTF threads on all ports for pressure-tight thread sealing
• 1,000 psi maximum working pressure rating
• Wide temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pipe systems using 1/4 inch FNPTF threaded connections rated within 1,000 psi and 250 degrees F service limits.

Installation Notes

Installation is performed by licensed pipefitters, plumbers, or qualified industrial maintenance technicians. Depressurize and drain the system completely before removing or installing any pipe fitting. Apply an appropriate thread sealant or PTFE tape rated for the fluid service to all threaded connections prior to assembly. Do not exceed the rated working pressure or temperature limits for this fitting.
