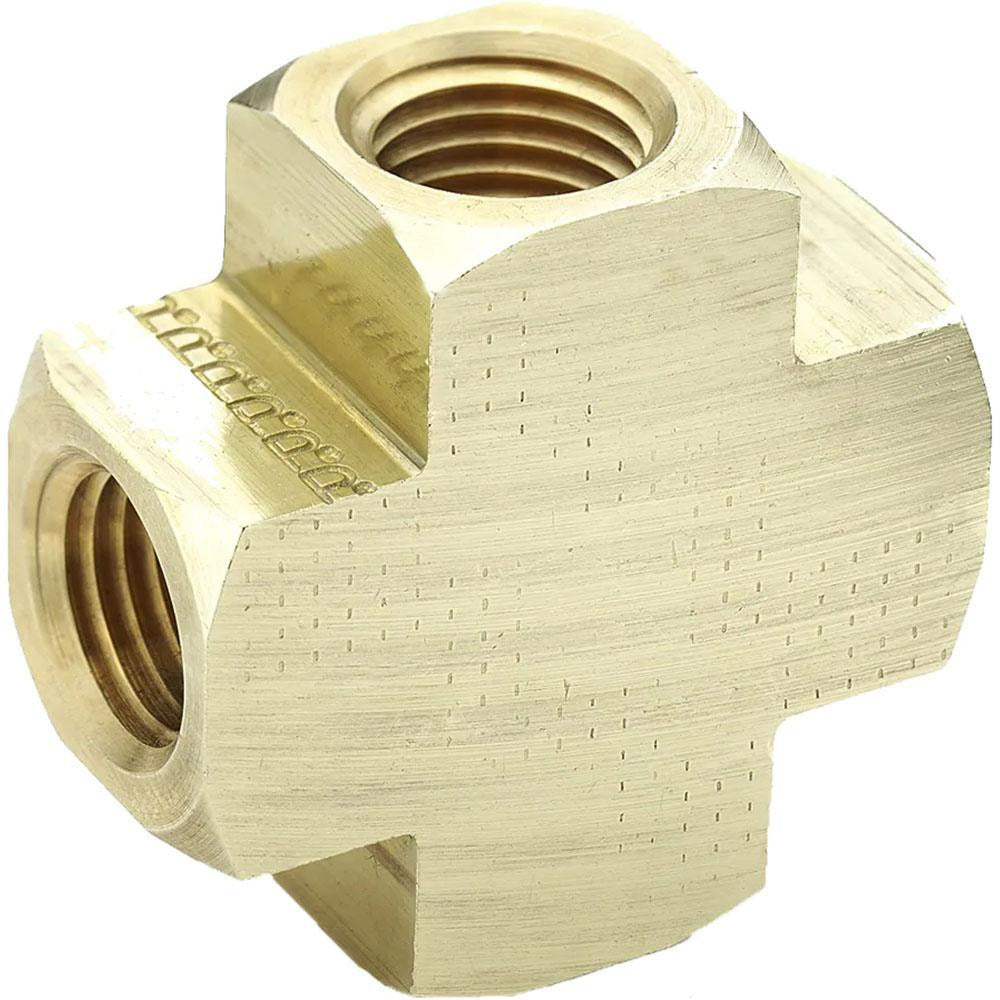

Parker 2205P-12 Brass Female Cross 3/4 Inch Fnptf

Product Description

The PARKER 2205P-12 is a brass female cross pipe fitting designed for industrial fluid and gas distribution systems. It provides four-way flow splitting or combining in a single body, accepting 3/4 inch female National Pipe Taper Fuel (FNPTF) connections on all ports. Rated to 1,000 psi maximum working pressure, this fitting handles demanding pressure ranges found in hydraulic, pneumatic, and process piping applications. The solid brass construction resists corrosion and provides reliable sealing across a wide temperature range. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This fitting is suited for residential and commercial plumbing, industrial process lines, and fluid power distribution systems where a four-way branch point is required. The FNPTF thread form provides a pressure-tight seal with compatible male NPTF fittings. Applications include compressed air headers, hydraulic manifolds, fuel distribution lines, and general-purpose pipe assemblies where 3/4 inch branching is needed. It is sold individually and is appropriate for both new construction and retrofit installations.

Key Features

• Four-way female cross configuration allows branching in a single compact fitting body
• 3/4 inch FNPTF threads on all ports for pressure-tight metal-to-metal sealing
• 1,000 psi maximum working pressure rating suitable for high-demand service
• Brass construction provides corrosion resistance and durability in fluid and gas service
• Wide operating temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation component for 3/4 inch FNPTF pipe systems requiring a four-way cross fitting in brass construction.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable codes such as the IPC or IFGC depending on the fluid service. Shut off and depressurize the system completely before disassembling or installing any pipe fitting. FNPTF threads are designed to seal on the thread form itself; use thread sealant or PTFE tape only as specified for the service fluid. Do not overtighten, as brass fittings can crack under excessive torque.
