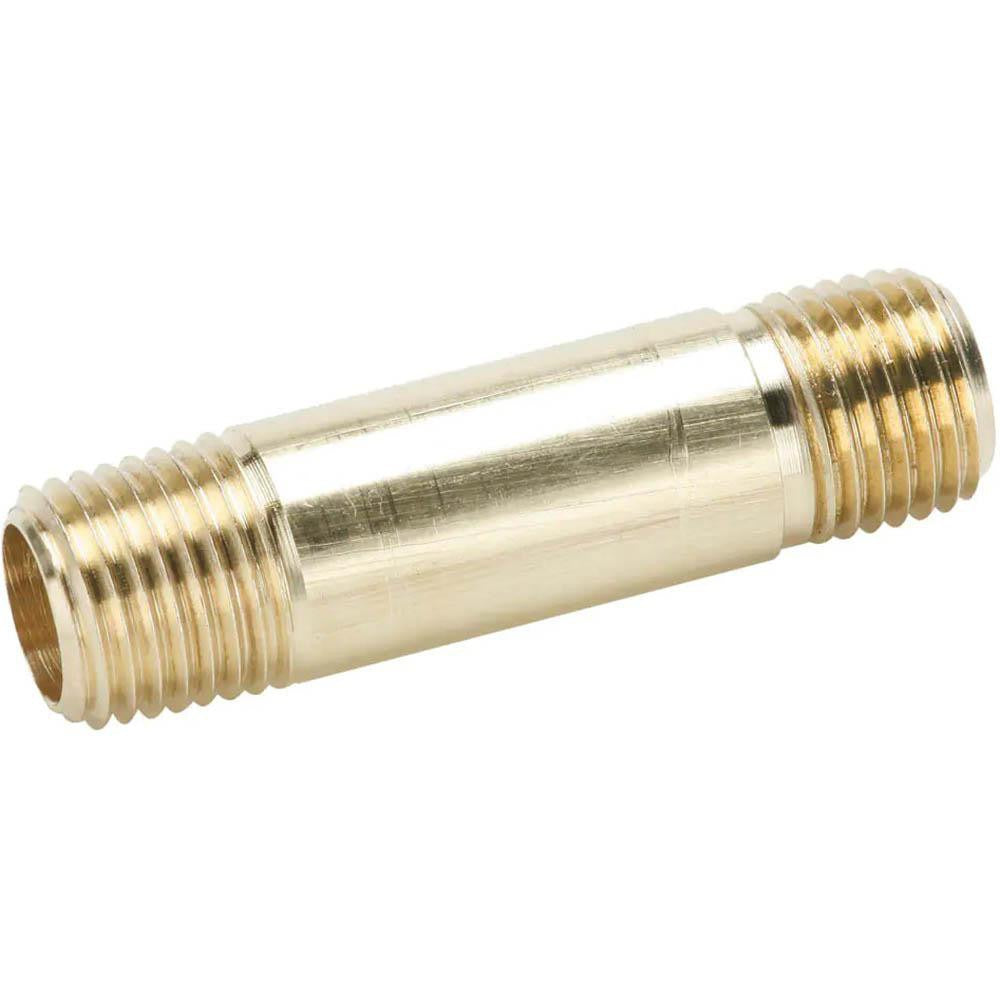

Parker 215PNL-8-25 Long Nipple 1/2 in Mnptf Brass

Product Description

The PARKER 215PNL-8-25 is a brass long nipple pipe fitting with a 1/2 inch male MNPTF thread on both ends. It is rated for up to 1000 psi working pressure and handles temperatures from -65 degrees F to 250 degrees F. At 2.5 inches in overall length, it is used to extend or connect threaded pipe runs in compressed air, hydraulic, pneumatic, and fluid-handling systems. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting in both new construction and retrofit applications. It meets SAE J530 and SAE J531 standards.

This long nipple is suited for residential and commercial plumbing, industrial fluid lines, and compressed air distribution systems where a short, fully threaded male-to-female pipe extension is needed. Its brass construction resists corrosion in water, oil, and many common industrial fluids, making it appropriate for a wide range of pipe assembly configurations requiring a 1/2 inch MNPTF connection point.

Key Features

• 1000 psi maximum working pressure for demanding fluid and air systems
• Temperature range of -65 degrees F to 250 degrees F
• 2.5 inch overall length provides adequate thread engagement for standard pipe runs
• Brass construction offers corrosion resistance across water, oil, and common industrial media
• MNPTF thread type ensures a pressure-tight tapered thread seal
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch MNPTF threaded pipe systems in industrial, commercial, and residential fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to tapered threads before assembly. Do not over-torque brass fittings, as the material can crack under excessive force.
