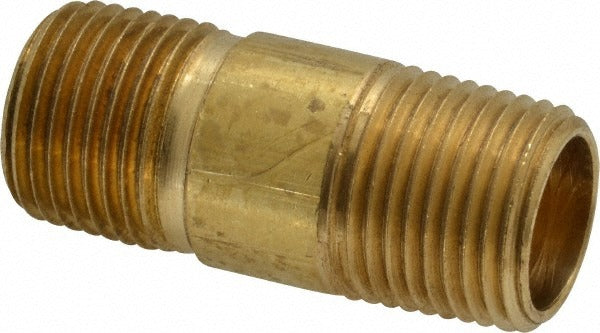

Parker 215PNL-8-20 Brass Long Nipple 1/2 in Mnptf

Product Description

The PARKER 215PNL-8-20 is a brass long nipple fitting with a 1/2 inch male MNPTF thread. It is used to extend or connect threaded pipe runs in industrial, plumbing, and fluid-conveyance systems. Rated to 1000 psi maximum working pressure and a maximum working temperature of 250 degrees F, it handles demanding service conditions. The brass construction resists corrosion and is well suited for water, air, oil, and compatible fluid systems. Licensed plumbers and industrial pipefitters are the primary installers of this component.

This long nipple is used in industrial pipe assemblies wherever a short close nipple is insufficient and a full-length threaded connector is required. At 2 inches overall length with MNPTF threads on both ends, it fits standard 1/2 inch threaded pipe configurations. Typical applications include compressed air distribution, hydraulic lines, water service, and general-purpose fluid transfer in both commercial and light industrial settings.

Key Features

• 1000 psi maximum working pressure rating
• 250 degrees F maximum working temperature and -65 degrees F minimum working temperature
• 1/2 inch MNPTF male thread on both ends
• 2 inches overall length
• Brass construction for corrosion resistance
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2 inch NPT threaded pipe systems in industrial and commercial fluid-conveyance applications.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Depressurize and drain the line completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads in accordance with the applicable plumbing code before assembly. Do not over-torque brass fittings, as the material is softer than steel and susceptible to thread damage.
