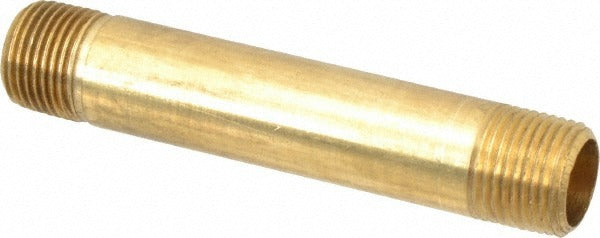

Parker 215PNL-6-35 Long Nipple 3/8 Mnptf Brass 1000 Psi

Product Description

The PARKER 215PNL-6-35 is a brass long nipple pipe fitting with a 3/8-inch male MNPTF thread on both ends. It is designed for use in compressed air, hydraulic, and fluid transfer lines where a reliable threaded connection is required between two female-threaded fittings or ports. Rated to 1,000 psi maximum working pressure, it handles operating temperatures from -65 degrees F to 250 degrees F. The overall length is 3.5 inches. This fitting is installed by plumbers, pipefitters, and HVAC technicians working on industrial and commercial fluid or gas distribution systems.

This long nipple is suited for residential and light commercial plumbing, HVAC refrigerant line accessories, compressed air distribution, and general industrial piping applications. Its 3/8-inch MNPTF thread makes it compatible with standard female NPT fittings and pipe tees, couplings, and valves of the same nominal size. It is commonly used where a longer nipple is needed to bridge a gap between two threaded components or to extend a threaded outlet.

Key Features

• 3/8-inch MNPTF male thread on both ends for standard NPT connections
• 1,000 psi maximum working pressure rating
• Operating temperature range: -65 degrees F to 250 degrees F
• 3.5-inch overall length provides extension between threaded ports
• Brass construction for corrosion resistance in fluid and gas service
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or standard-stock long nipple for 3/8-inch female NPT threaded connections in plumbing, HVAC, and industrial piping assemblies.

Installation Notes

Installation is performed by licensed plumbers or pipefitters using a pipe wrench and appropriate thread sealant or PTFE tape applied to the male threads. Shut off and depressurize the system completely before removing or installing any threaded fittings. Do not overtighten brass fittings, as the material is susceptible to thread damage under excessive torque. Follow applicable IPC and IFGC code requirements for the fluid or gas being conveyed.
