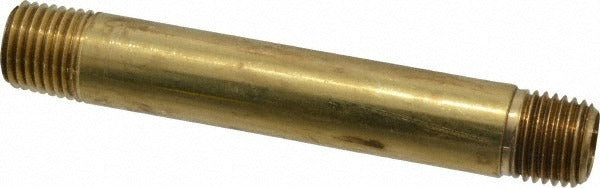

Parker 215PNL-4-35 Long Nipple 1/4 Inch Mnptf Brass

Product Description

The PARKER 215PNL-4-35 is a brass long nipple pipe fitting with a 1/4 inch male MNPTF thread on both ends. It is designed for use in industrial piping systems where a straight, externally threaded connector is needed to extend or join pipe runs. Rated to 1000 psi maximum working pressure and capable of handling temperatures from -65 degrees F to 250 degrees F, this fitting suits demanding fluid and gas transfer applications. At 3.5 inches in overall length, it provides additional reach compared to a close or short nipple. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers.

This long nipple is suited for residential and commercial plumbing, hydraulic lines, pneumatic systems, and general industrial piping where a 1/4 inch MNPTF threaded connection is required. The brass construction resists corrosion and is compatible with a wide range of media including water, air, oil, and many hydraulic fluids. It conforms to SAE J530 and SAE J531 standards, making it appropriate for automotive and industrial fluid connector applications as well.

Key Features

• 1000 psi maximum working pressure for high-demand fluid and gas systems
• Operating temperature range of -65 degrees F to 250 degrees F
• 3.5 inch overall length provides extended reach in pipe runs
• Brass construction offers corrosion resistance across a broad range of media
• MNPTF thread type ensures a tapered, pressure-rated male connection
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial and commercial piping systems requiring a 1/4 inch MNPTF male threaded long nipple connection.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local codes and IFGC or IPC requirements. Shut off and depressurize the system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly to ensure a leak-free connection. Do not over-tighten, as brass fittings can be damaged by excessive torque.
