Parker 215PNL-4-30 Long Nipple 1/4 Inch Mnptf Brass

Product Description

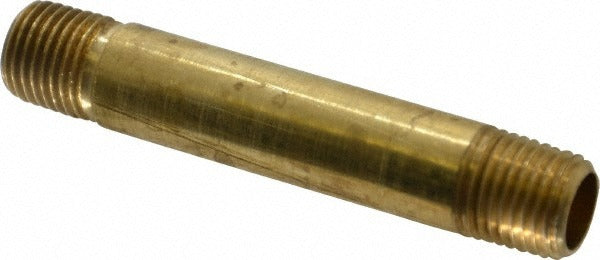

The PARKER 215PNL-4-30 is a brass long nipple pipe fitting designed for industrial fluid and gas piping systems. It features a 1/4 inch male MNPTF (male national pipe thread fuel) connection on both ends and carries a maximum working pressure of 1,000 psi. The fitting measures 3 inches in overall length and is rated for temperatures from -65 degrees F to 250 degrees F. Brass construction provides corrosion resistance in a wide range of media. This fitting is installed by licensed plumbers, pipefitters, and HVAC technicians in both industrial and commercial piping applications.

This long nipple is suited for connecting threaded pipe runs where additional reach is needed beyond a standard close or short nipple. Typical applications include hydraulic lines, compressed air distribution, fuel systems, and general-purpose fluid transfer in commercial and light industrial environments. The MNPTF thread form is designed to create a pressure-tight seal when used with appropriate thread sealant or tape. The 3 inch body length accommodates valve tie-ins, manifold connections, and panel-mount pass-throughs where standard nipple lengths fall short.

Key Features

• 1/4 inch MNPTF male thread on both ends for standard threaded pipe connections
• 1,000 psi maximum working pressure for demanding fluid and gas service
• 3 inch overall length provides extension reach beyond short or close nipples
• Brass construction offers corrosion resistance across a broad range of media
• Wide temperature range: -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or direct-install fitting for 1/4 inch MNPTF threaded pipe systems in industrial, commercial, and HVAC piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes. Shut off and depressurize the system fully before removing or installing any threaded fittings. Apply thread sealant or PTFE tape rated for the service media to all threads before assembly. Do not overtighten brass fittings, as the material is subject to thread damage under excessive torque.
