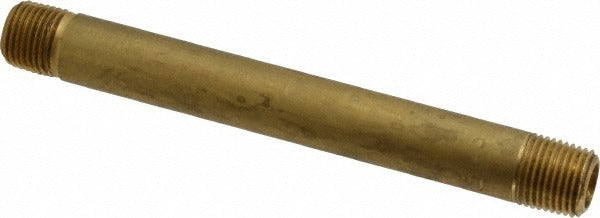

Parker 215PNL-2-35 Long Nipple 1/8 Inch Mnptf Brass

Product Description

The PARKER 215PNL-2-35 is a brass long nipple fitting designed for industrial pipe assemblies requiring a reliable threaded connection. It features a 1/8 inch male MNPTF thread and a 3.5 inch overall length, making it suitable for extending pipe runs or bridging component spacing in tight plumbing and pneumatic circuits. Rated to 1000 psi maximum working pressure and capable of operating across a temperature range of -65 degrees F to 250 degrees F, this fitting handles demanding service conditions. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting in both fluid and gas line applications.

This long nipple is used in residential and commercial piping systems where a standard close or short nipple does not provide enough thread engagement or standoff distance. Typical applications include compressed air distribution, hydraulic lines, fuel systems, and general-purpose plumbing connections. Its brass construction offers corrosion resistance in wet and moderately aggressive media. The MNPTF thread form provides a dryseal interference fit, reducing reliance on thread sealant alone to maintain pressure integrity at the joint.

Key Features

• 1/8 inch male MNPTF dryseal thread for pressure-tight connections without full reliance on sealant
• 3.5 inch overall length for extended reach or bridging in pipe assemblies
• 1000 psi maximum working pressure rating
• Operating temperature range from -65 degrees F to 250 degrees F
• Brass construction provides corrosion resistance for fluid and gas service
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or standard component for industrial and commercial pipe systems using 1/8 inch MNPTF threaded fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and IFGC guidelines. Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to male threads per the system fluid and pressure requirements, even with dryseal MNPTF threads, when the application demands it. Do not over-torque brass fittings, as the material is more susceptible to thread damage than steel.
