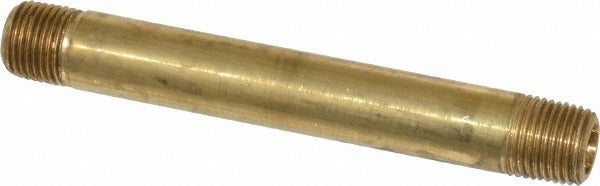

Parker 215PNL-2-30 Long Nipple 1/8 Inch Mnptf Brass

Product Description

The PARKER 215PNL-2-30 is a brass long nipple fitting designed for industrial pipe assemblies requiring a reliable threaded male connection. Rated to 1000 psi maximum working pressure and capable of handling temperatures from -65 degrees F to 250 degrees F, this fitting is built for demanding fluid and gas transfer applications. The 1/8 inch MNPTF thread form provides a tapered, pressure-tight seal without the need for additional sealing components at the thread itself. At 3 inches overall length and 0.07 pounds, it is a compact, lightweight component suited for tight routing in instrumentation, pneumatic, and hydraulic line assemblies.

This long nipple is appropriate for use in residential, commercial, and light industrial plumbing and instrumentation systems where a straight threaded pipe extension is needed between two female-threaded ports or fittings. Typical install scenarios include connecting valves, gauges, regulators, and manifold blocks in compressed air, hydraulic, and fluid distribution lines. The MNPTF classification aligns with SAE J530 and SAE J531 standards, making it a recognized choice for applications requiring documented fitting compliance.

Key Features

• 1/8 inch MNPTF tapered male thread for pressure-tight pipe connections
• 1000 psi maximum working pressure rating
• Operating temperature range: -65 degrees F to 250 degrees F
• 3 inch overall length provides extended reach between threaded ports
• Brass construction offers corrosion resistance in fluid and pneumatic service
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial pipe systems using 1/8 inch MNPTF threaded connections in pneumatic, hydraulic, and fluid instrumentation assemblies.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified mechanical technician. Depressurize and isolate the line completely before removing or installing any threaded pipe fitting. Apply thread sealant or PTFE tape as appropriate for the service fluid, following the fitting manufacturer and system design guidelines. Torque to hand-tight plus the appropriate number of turns per applicable piping codes such as ASME B1.20.1 for NPT threads.
