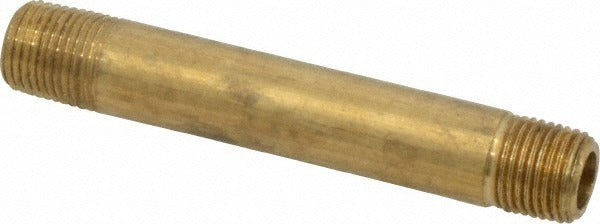

Parker 215PNL-2-25 Long Nipple 1/8 in Mnptf 1000 Psi

Product Description

The PARKER 215PNL-2-25 is a long nipple pipe fitting designed for industrial fluid and pneumatic systems requiring a reliable threaded connection. It features a 1/8 inch MNPTF (male national pipe taper fuel) thread and is rated to 1000 psi maximum working pressure. The fitting measures 2-1/2 inches in overall length and handles a temperature range of -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and industrial mechanics install this type of fitting in compressed air lines, hydraulic systems, and fuel distribution assemblies where a code-compliant threaded nipple is required.

This long nipple is suited for light-duty to medium-duty industrial piping applications, including compressed air distribution, pneumatic tool supply lines, and low-diameter fuel or fluid transfer systems. The MNPTF thread classification makes it appropriate for use in sealed, pressure-bearing connections where thread-form integrity is critical. It is sold individually and compatible with standard 1/8 inch female NPT or NPTF ports and fittings.

Key Features

• 1/8 inch MNPTF male thread for leak-resistant tapered pipe connections
• 1000 psi maximum working pressure rating
• 2-1/2 inch overall length for extended reach or offset installations
• Operating temperature range of -65 degrees F to 250 degrees F
• Meets SAE J530 and SAE J531 standards

Compatibility

Designed as a standard-thread replacement or OEM-style long nipple for 1/8 inch MNPTF ported assemblies in industrial piping systems. Compatible with standard 1/8 inch female NPT and NPTF couplings, valves, and fittings conforming to SAE J530 and SAE J531.

Installation Notes

Installation is typically performed by licensed pipefitters or industrial mechanics. Depressurize and isolate the system fully before removing or installing any threaded pipe fitting. Apply appropriate thread sealant or PTFE tape per system media requirements — do not over-tighten tapered threads, as this can crack fittings or distort port threads. Verify final assembly pressure integrity before returning the system to service.
