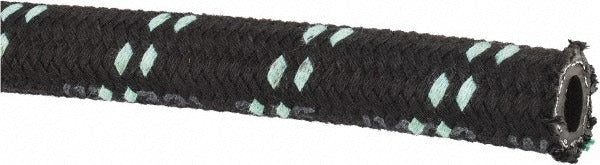

Parker 213-8-RL Hydraulic Hose 13/32 in Id 1250 Psi

Product Description

The PARKER 213-8-RL is a size -8 synthetic rubber hydraulic hose designed for high-pressure fluid and air brake line applications. With a 13/32-inch inner diameter and a 0.74-inch outer diameter, this hose handles a maximum working pressure of 1,250 psi at the cut-length level and is rated up to 5,000 psi at the coil specification level per its series rating. The operating temperature range spans -50 degrees F to 302 degrees F, making it suitable for demanding environments. It is sold in 1-foot increments with a 20-foot minimum cut length. HVAC, fleet maintenance, and hydraulic system technicians install this hose as part of pressure line assemblies.

The 213-8-RL is built for use in air brake systems and hydraulic pressure lines on commercial vehicles, mobile equipment, and industrial machinery. The hose ships from a 450-foot coil, allowing job-site cutting to required lengths. Its 1-3/4-inch minimum bend radius gives installers flexibility when routing through tight chassis or equipment compartments. The black synthetic rubber construction withstands exposure to oils, weather, and temperature extremes typical in fleet and industrial service environments.

Key Features

• Size -8 hose: 13/32-inch ID and 0.74-inch OD for standard hydraulic fittings
• 1,250 psi working pressure rating with 5,000 psi series pressure capacity
• Operating range of -50 degrees F to 302 degrees F (-45 degrees C to 150 degrees C)
• 1-3/4-inch minimum bend radius for tight routing in vehicle and equipment chassis
• Meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards
• Sold in 1-foot increments from a 450-foot coil; 20-foot minimum cut length

Compatibility

Designed as an OEM-style replacement and fabrication hose for air brake and hydraulic pressure line assemblies requiring a size -8 hose meeting DOT FMVSS 106 and SAE J1402 AI specifications.

Installation Notes

Installation should be performed by a qualified hydraulic or fleet maintenance technician. Depressurize and bleed the hydraulic or air brake system completely before cutting or connecting hose. Use proper hose-cutting tools to ensure a clean, square cut end before attaching fittings. Verify that all fittings and adapters are rated to meet or exceed the hose working pressure and comply with applicable DOT air brake regulations.
