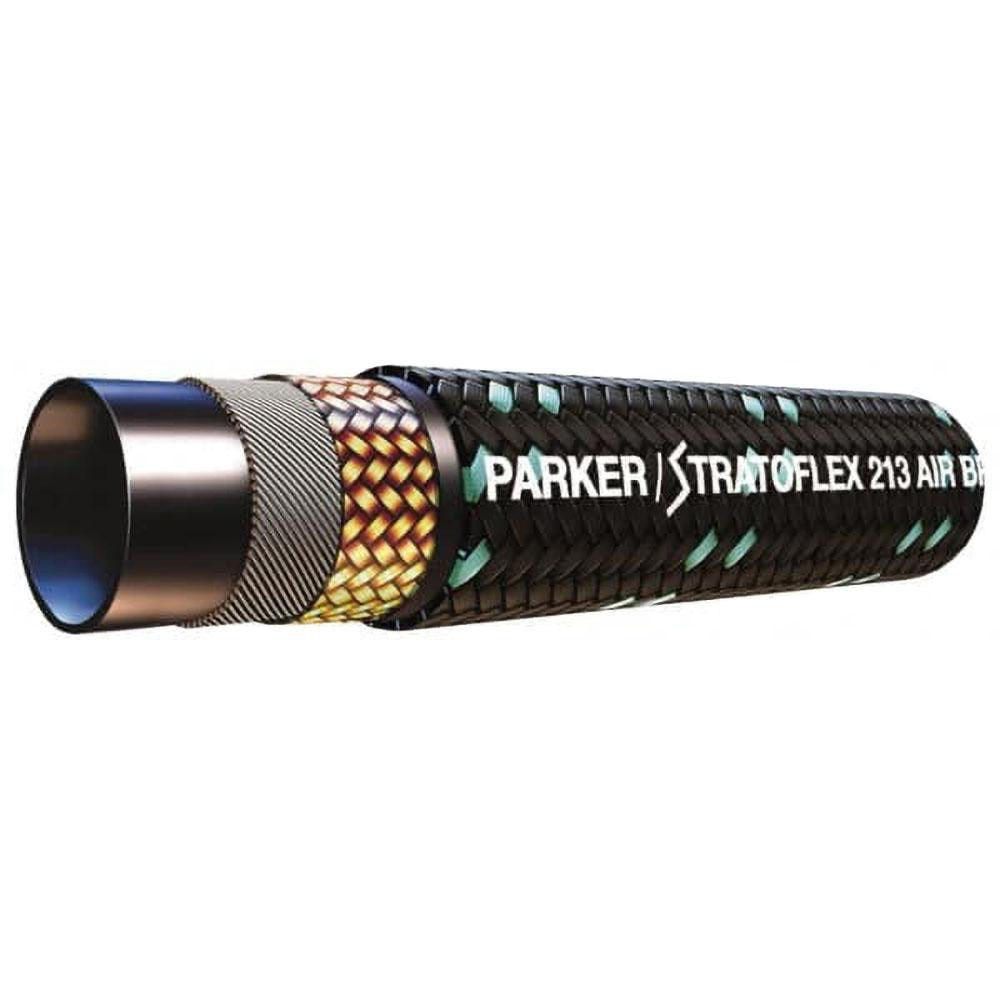

Parker 213-4-RL Hydraulic Hose 2000 Psi 3/16 Inch Id

Product Description

The PARKER 213-4-RL is a -4 hose size hydraulic hose engineered for high-pressure fluid and air brake applications. It features a 3/16 inch inner diameter and a 0.49 inch outer diameter, with a maximum working pressure of 2,000 psi. Constructed from synthetic rubber, this hose handles an operating temperature range of -50 degrees F to 302 degrees F, making it suited for demanding mobile and industrial environments. It is sold in 1-foot increments with a 20-foot minimum cut length, and is available in full 1,000-foot coils. Hydraulic system technicians and fleet maintenance professionals are the primary installers.

This hose is designed for use in mobile hydraulic systems, air brake circuits, and related fluid-power applications where DOT-rated components are required. The Series 213 construction is commonly specified in commercial vehicle and off-highway equipment installations. A 3/4 inch minimum bend radius allows routing in tight spaces without kinking or flow restriction. Contractors and service technicians working on trucks, trailers, and heavy equipment will find this hose a direct fit for air brake and hydraulic line replacement work.

Key Features

• 2,000 psi maximum working pressure for demanding hydraulic and air brake circuits
• Synthetic rubber construction rated from -50 degrees F to 302 degrees F
• 3/4 inch minimum bend radius for routing in confined installations
• Meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards
• Sold in 1-foot increments with a 20-foot minimum cut length
• Available in full 1,000-foot coils for high-volume shop use

Compatibility

Designed as a DOT FMVSS 106 and SAE J1402 AI-compliant replacement hose for -4 hose size air brake and hydraulic applications in commercial vehicles and mobile equipment where Series 213 hose is specified.

Installation Notes

Installation should be performed by a qualified hydraulic technician or certified commercial vehicle mechanic. Depressurize and bleed the hydraulic or air brake system fully before disconnecting any existing hose. Ensure the selected hose end fittings are rated for the working pressure and are compatible with the Parker Series 213 hose OD before crimping or swaging. Follow DOT FMVSS 106 and SAE J1402 guidelines for minimum bend radius and routing clearances to prevent abrasion or premature failure.
