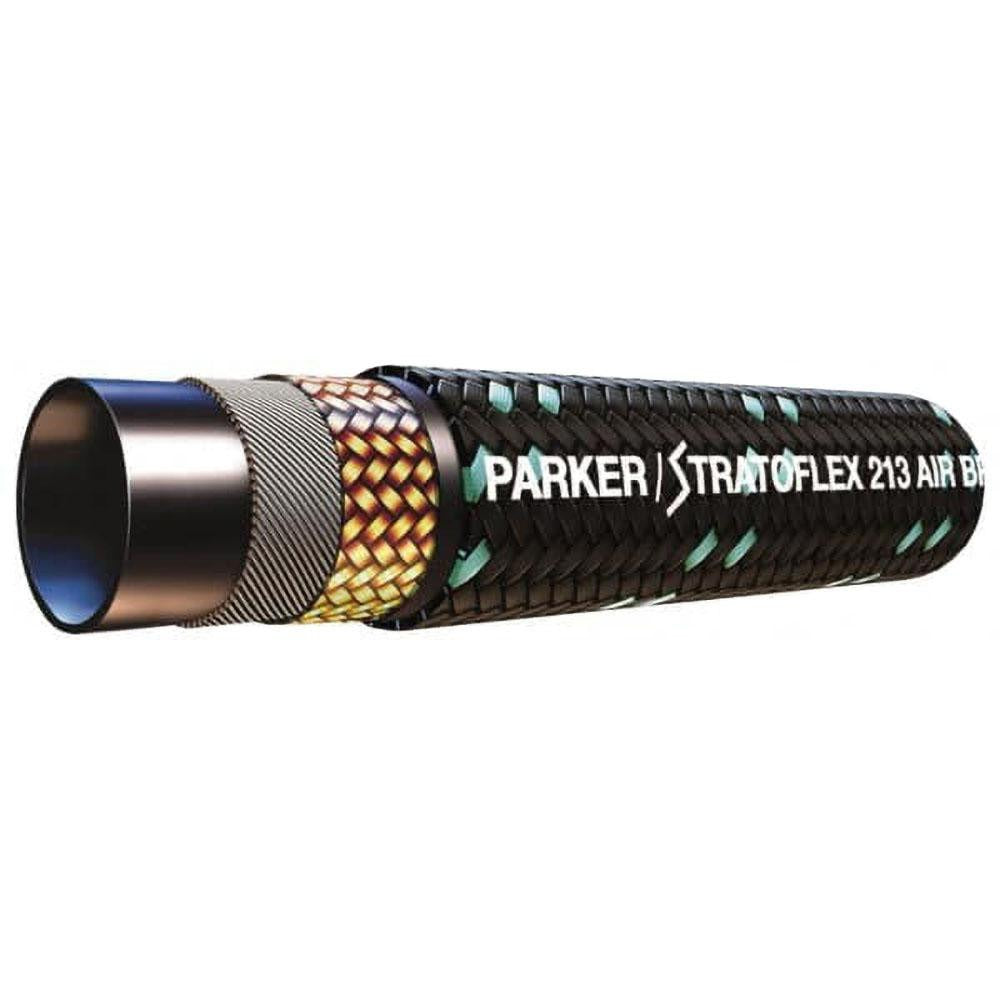

Parker 213-24 Hydraulic Hose 1-3/8 in Id 300 Psi

Product Description

The PARKER 213-24 is a heavy-duty hydraulic hose engineered for high-pressure air brake and fluid transfer applications. Built from synthetic rubber, it measures 1.375 inches inner diameter and 1.73 inches outer diameter, with a maximum working pressure of 1200 psi. The hose is sold in 1-foot increments with a 5-foot minimum cut length from a 55-foot total coil. It is rated for a wide operating temperature range of -50 degrees F to 302 degrees F, making it suitable for demanding under-vehicle and industrial environments. HVAC techs, fleet maintenance professionals, and hydraulic system installers work with this product in high-cycle, high-pressure service conditions.

This hose is designed for air brake systems and hydraulic lines where DOT and SAE compliance is required. The -24 hose size designation corresponds to a 1-3/8 inch ID, placing it in the larger-diameter range commonly used on commercial trucks, heavy equipment, and industrial machinery. Its synthetic rubber construction resists abrasion, weathering, and fluid degradation under continuous service. The 7.5-inch minimum bend radius allows routing through tight chassis runs without kinking or compromising pressure integrity.

Key Features

• 1200 psi maximum working pressure for demanding hydraulic and air brake service
• Synthetic rubber construction resists abrasion, oil, and weathering
• Wide temperature range: -50 degrees F to 302 degrees F
• Meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards
• 7.5-inch minimum bend radius supports tight routing applications
• Sold in 1-foot increments with a 5-foot minimum cut length from a 55-foot coil

Compatibility

Designed as an OEM-style replacement or service hose for commercial air brake systems and hydraulic assemblies requiring a -24 hose size (1-3/8 inches ID) with DOT FMVSS 106 and SAE J1402 AI certification.

Installation Notes

Installation should be performed by a qualified hydraulic or fleet maintenance technician. Depressurize the hydraulic or air brake system completely before cutting, fitting, or replacing any hose section. Use properly rated end fittings matched to the -24 hose size and rated for 1200 psi or greater. Do not exceed the 7.5-inch minimum bend radius during routing, and avoid contact with sharp edges or heat sources that could damage the outer jacket.
