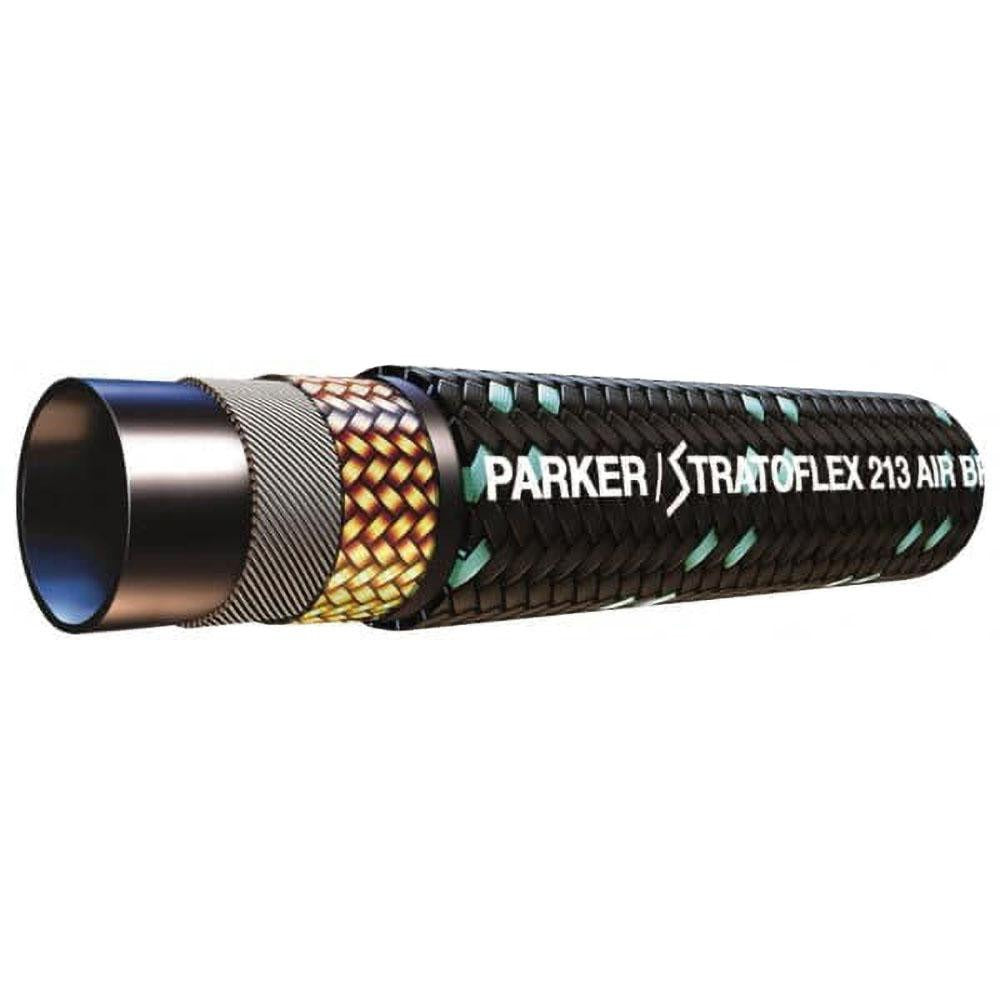

Parker 213-20 Hydraulic Air Brake Hose 1-1/8 Inch Id

Product Description

The PARKER 213-20 is a heavy-duty synthetic rubber hydraulic hose engineered for air brake and high-pressure hydraulic service. With a 1-1/8 inch inner diameter and 1.49 inch outer diameter, this hose handles up to 1,200 psi maximum working pressure. The black synthetic rubber construction delivers flexibility across a wide temperature range, rated from -50 degrees F to 302 degrees F. Sold in 1-foot increments with a 5-foot minimum cut length, it ships from a 55-foot coil. Fleet mechanics, heavy equipment technicians, and hydraulic system installers use this hose in demanding mobile and stationary applications.

The PARKER 213-20 Series hose is suited for air brake circuits on commercial vehicles and heavy-duty mobile equipment. Its DOT FMVSS 106 and SAE J1402 AI certifications make it a compliant choice for regulated air brake systems. The 4.5 inch minimum bend radius allows routing in tight chassis and equipment compartments without kinking or flow restriction. This hose is appropriate for both OEM build and field replacement in commercial trucking, bus, and heavy equipment fleets.

Key Features

• 1,200 psi maximum working pressure for high-demand hydraulic and air brake service
• Synthetic rubber construction rated from -50 degrees F to 302 degrees F
• DOT FMVSS 106 AIR BRAKE-AI and SAE J1402 AI certified for regulated air brake applications
• 4.5 inch minimum bend radius for routing in tight equipment compartments
• Sold in 1-foot increments with a 5-foot minimum cut length from a 55-foot coil
• Black outer jacket resists abrasion and environmental exposure

Compatibility

Designed as a compliant OEM-style replacement hose for commercial vehicle and heavy equipment air brake and hydraulic circuits meeting DOT FMVSS 106 and SAE J1402 AI standards.

Installation Notes

Installation should be performed by a qualified hydraulic or heavy-vehicle technician. Depressurize the entire hydraulic or air brake circuit fully before cutting or connecting hose. Ensure all fittings are rated to at least the hose working pressure and are compatible with the hose end size. Follow applicable DOT and SAE regulations when servicing regulated air brake circuits.
