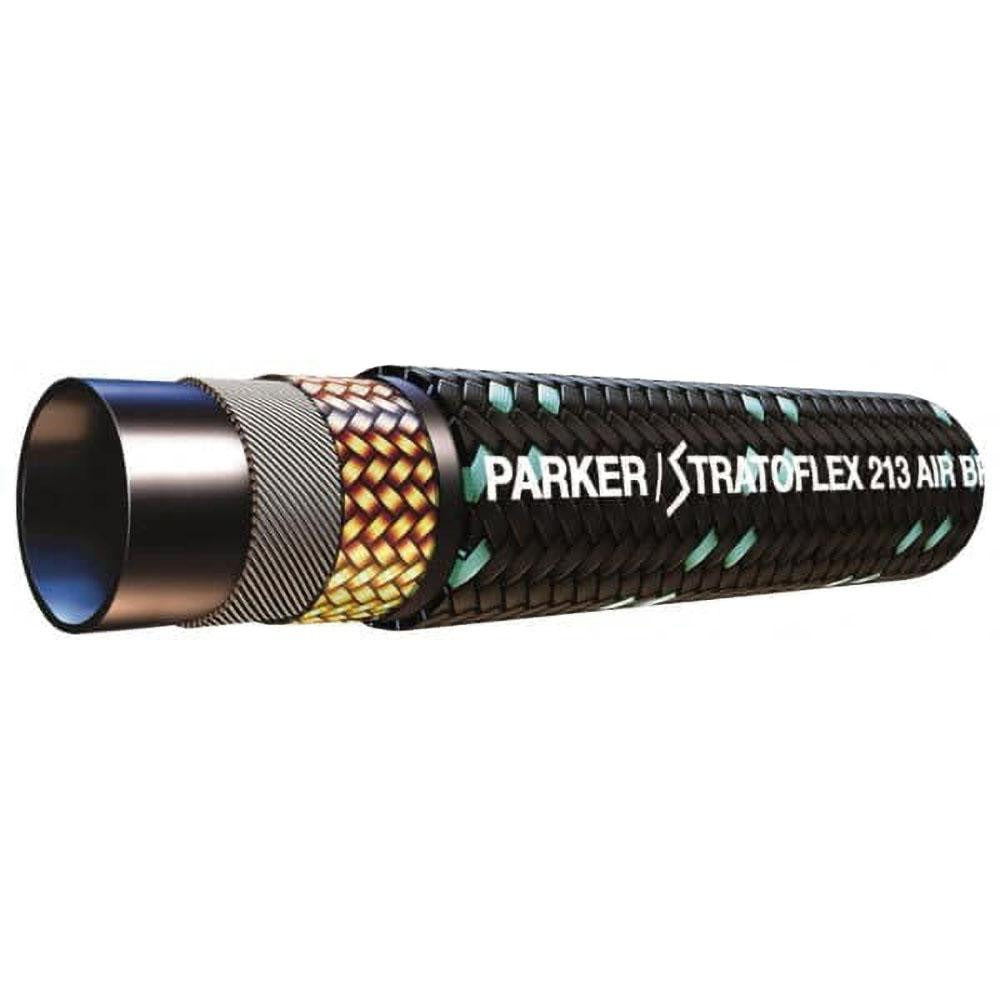

Parker 213-16-RL Hydraulic Hose 400 Psi 7/8 Inch Id

Product Description

The PARKER 213-16-RL is a Series 213 synthetic rubber hydraulic hose designed for air brake and high-pressure fluid transfer applications. Built to handle a maximum working pressure of 1,600 psi with a -16 hose size designation, it measures 7/8 inches inner diameter and 1.21 inches outer diameter. The hose is rated for temperatures from -50 degrees F to 302 degrees F, making it suitable for demanding under-vehicle and industrial environments. It is sold in 1-foot increments with a 5-foot minimum cut length from a 300-foot total coil. Licensed HVAC, fleet, and hydraulic system technicians install this hose in air brake circuits and related high-pressure lines.

The PARKER 213-16-RL is used in commercial vehicle air brake systems and industrial hydraulic applications requiring DOT-compliant hose assemblies. Its black synthetic rubber construction and 3.5-inch minimum bend radius make it practical for routed installations in tight engine compartments and chassis environments. The hose meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards, confirming it for regulated air brake service on trucks, trailers, and buses. It is appropriate for both OEM assembly and field repair work performed by qualified technicians.

Key Features

• Maximum working pressure of 1,600 psi for robust air brake and hydraulic service
• Temperature range of -50 degrees F to 302 degrees F suits extreme operating environments
• Meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards for regulated vehicle use
• Synthetic rubber construction resists flex fatigue and fluid degradation
• Sold in 1-foot increments from a 300-foot coil with a 5-foot minimum cut length
• 3.5-inch minimum bend radius allows routing in confined spaces

Compatibility

Designed for use in DOT-regulated air brake circuits and industrial hydraulic systems requiring a -16 hose size with 7/8-inch inner diameter and compliance with SAE J1402 AI and DOT FMVSS 106 Air Brake-AI standards.

Installation Notes

Installation should be performed by a qualified technician familiar with DOT air brake system requirements and applicable Federal Motor Vehicle Safety Standards. Depressurize the air brake system fully before cutting, routing, or connecting the hose. Use proper hose-end fittings rated for the system working pressure, and observe the 3.5-inch minimum bend radius to avoid kinking or premature wear. Refer to FMVSS 106 and SAE J1402 guidelines for assembly and inspection requirements.
