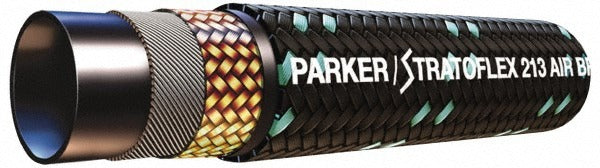

Parker 213-12-RL Hydraulic Hose 3000 Psi 5/8 in Id

Product Description

The PARKER 213-12-RL is a -12 hose size hydraulic hose rated for 3000 psi maximum working pressure. It features a 5/8 inch inner diameter and a 0.96 inch outer diameter, constructed from synthetic rubber for durability across a wide temperature range. The hose operates from -50 degrees F to 302 degrees F, making it suitable for demanding hydraulic circuits in both mobile and stationary equipment. It is sold in 1-foot increments with a 5-foot minimum cut length per order. Licensed hydraulic technicians and fluid power specialists are the primary installers of this product.

This hose is designed for medium-pressure hydraulic system applications where flexible routing and reliable fluid transfer are required. A 2-3/4 inch bend radius supports tight routing in confined equipment bays. The 350-foot coil format makes it well suited for shop fabrication environments where custom-length hose assemblies are cut and crimped to spec. Typical uses include mobile equipment, industrial machinery, and agricultural hydraulic circuits that operate within the rated pressure and temperature envelope.

Key Features

• 3000 psi maximum working pressure for medium-pressure hydraulic circuits
• 5/8 inch ID (-12 hose size) for standard hydraulic fittings
• Synthetic rubber construction for oil resistance and flexibility
• Wide operating temperature range: -50 degrees F to 302 degrees F
• 2-3/4 inch minimum bend radius supports routing in tight spaces
• 350-foot coil with 1-foot increment pricing and 5-foot minimum cut length

Compatibility

Designed as a -12 hose size hydraulic hose for use with standard hydraulic fittings and crimping systems compatible with 0.96 inch OD hose. Consult fitting manufacturer specifications to confirm crimp ferrule compatibility before assembly.

Installation Notes

Hydraulic hose assembly and installation should be performed by a qualified fluid power technician. Depressurize and de-energize the hydraulic system fully before removing or installing hose assemblies. Use proper crimping equipment sized for the hose OD and fitting series to ensure leak-free connections. Inspect hose routing to maintain the minimum 2-3/4 inch bend radius and avoid contact with sharp edges or heat sources.
