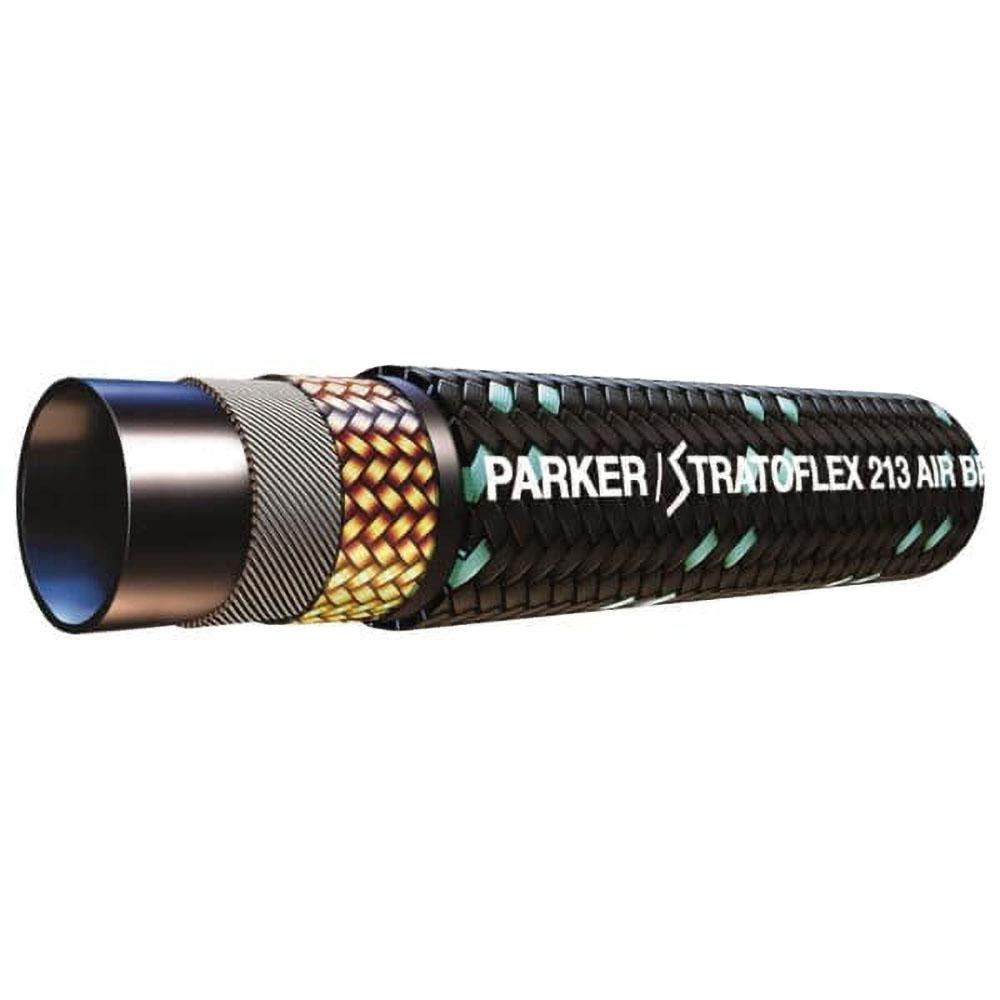

Parker 213-10-RL Hydraulic Hose 1/2 Inch Id 4000 Psi

Product Description

The PARKER 213-10-RL is a synthetic rubber hydraulic hose built for high-pressure air brake and fluid transfer applications. It carries a -10 hose size designation with a 1/2 inch inner diameter and a 0.83 inch outer diameter. Maximum working pressure is 4,000 psi. The hose is rated for temperatures from -50 degrees F to 302 degrees F, making it suitable for demanding environments including cold-climate operation. It is sold in 1-foot increments with a 10-foot minimum cut length and ships as a full 350-foot coil. Licensed HVAC, hydraulic, and fleet service technicians install this hose in brake line and high-pressure fluid routing work.

This hose is used in commercial vehicle air brake systems, heavy equipment hydraulic circuits, and industrial fluid transfer lines where DOT and SAE compliance is required. The 2-1/4 inch minimum bend radius allows for routing through tight chassis and equipment spaces. The black synthetic rubber construction resists abrasion, ozone, and weathering in both shop and field environments. Cut lengths are suited to custom assembly work performed by hydraulic hose fabricators and service technicians.

Key Features

• 4,000 psi maximum working pressure for high-demand hydraulic and air brake service
• 1/2 inch ID with 0.83 inch OD in the -10 hose size series
• Operating temperature range of -50 degrees F to 302 degrees F
• 2-1/4 inch minimum bend radius for tight routing applications
• Meets DOT FMVSS 106 Air Brake-AI and SAE J1402 AI standards
• Sold by the foot from a 350-foot coil with a 10-foot minimum cut length

Compatibility

Designed for use in air brake and hydraulic systems requiring DOT FMVSS 106 and SAE J1402 AI compliance. Consult Parker Series 213 fitting specifications for proper end termination compatibility.

Installation Notes

Installation should be performed by a qualified hydraulic hose technician or licensed commercial vehicle mechanic. Depressurize and bleed all system pressure before cutting or replacing hose. Use proper hose cutting and crimping equipment to ensure clean ends and secure fittings. Follow applicable DOT regulations and SAE guidelines for air brake hose routing, support intervals, and connection torque specifications provided by the fitting manufacturer.
