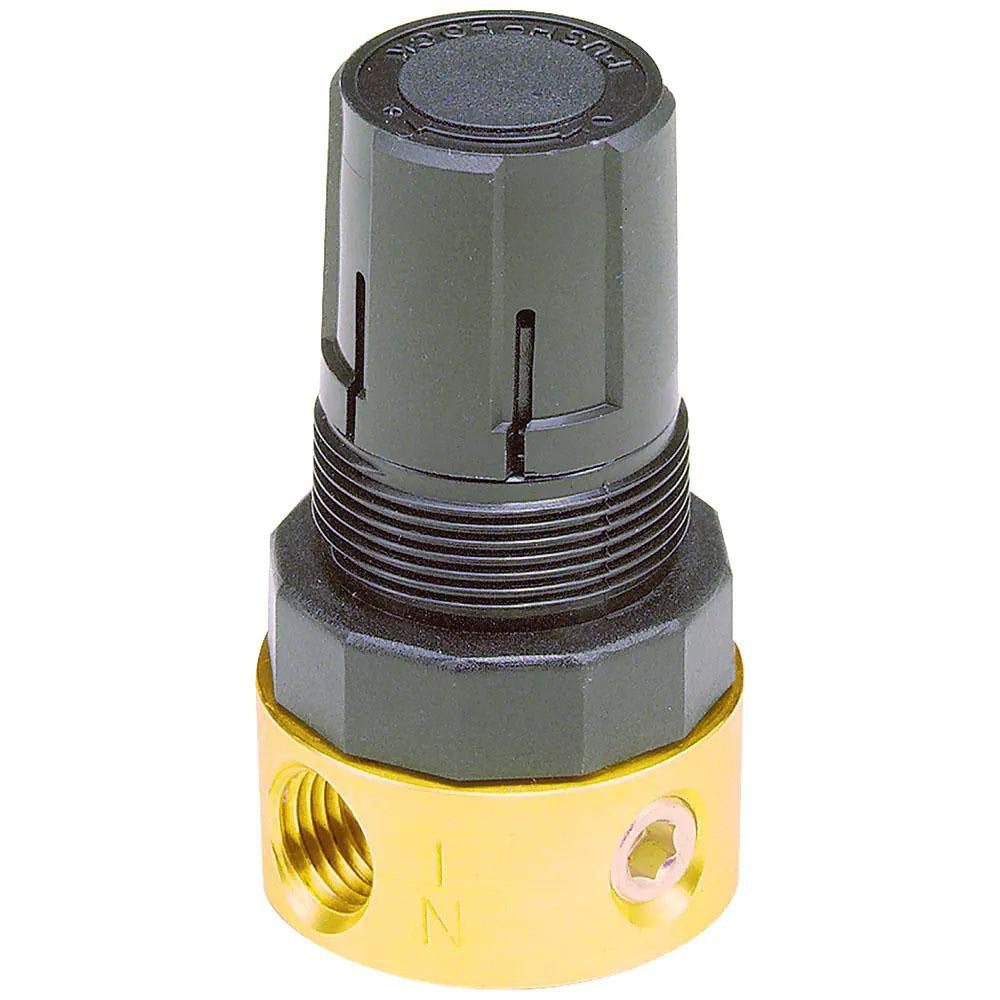

Parker 20R013GC Miniature Air Regulator 1/8 Npt 300 Psi

Product Description

The PARKER 20R013GC is a miniature compressed air regulator designed to control downstream pressure in pneumatic and compressed air systems. Built in the Parker 20R Series, this brass-bodied regulator accepts 1/8 inch NPT connections and handles supply pressures up to 300 psi, with an adjustable output range of 2 to 125 psi. At 0.7 pounds, the compact form factor suits space-restricted panel or inline installations. Licensed HVAC technicians, instrumentation technicians, and industrial maintenance professionals install this type of regulator where consistent, reduced downstream pressure is required in light-duty pneumatic circuits.

The 20R013GC is suited for residential and light commercial pneumatic control applications where a small-footprint regulator is needed. Its 1/8 inch NPT port size makes it compatible with miniature pneumatic lines and instrument air circuits. The regulator does not include a built-in pressure gauge, but a 1/8 inch gauge port thread is available for field installation of a separate gauge. No modular manifold connection is provided, so the unit is intended for standalone inline use.

Key Features

• Miniature 20R Series body fits tight panel and inline installations
• 300 psi maximum supply pressure with 2 to 125 psi adjustable output range
• 1/8 inch NPT inlet and outlet connections
• Brass construction for durability in compressed air service
• 1/8 inch gauge port thread for optional field-mounted pressure gauge
• Rated for fluid temperatures down to 32 degrees F minimum

Compatibility

Designed as an OEM-style replacement or direct installation regulator for miniature pneumatic systems using 1/8 inch NPT connections and requiring supply pressures up to 300 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system safety. De-energize and fully depressurize the air supply line before removing any existing regulator or installing this unit. Apply thread sealant appropriate for compressed air service to all NPT connections and verify for leaks after pressurizing. Consult applicable local codes and system design requirements before commissioning.
