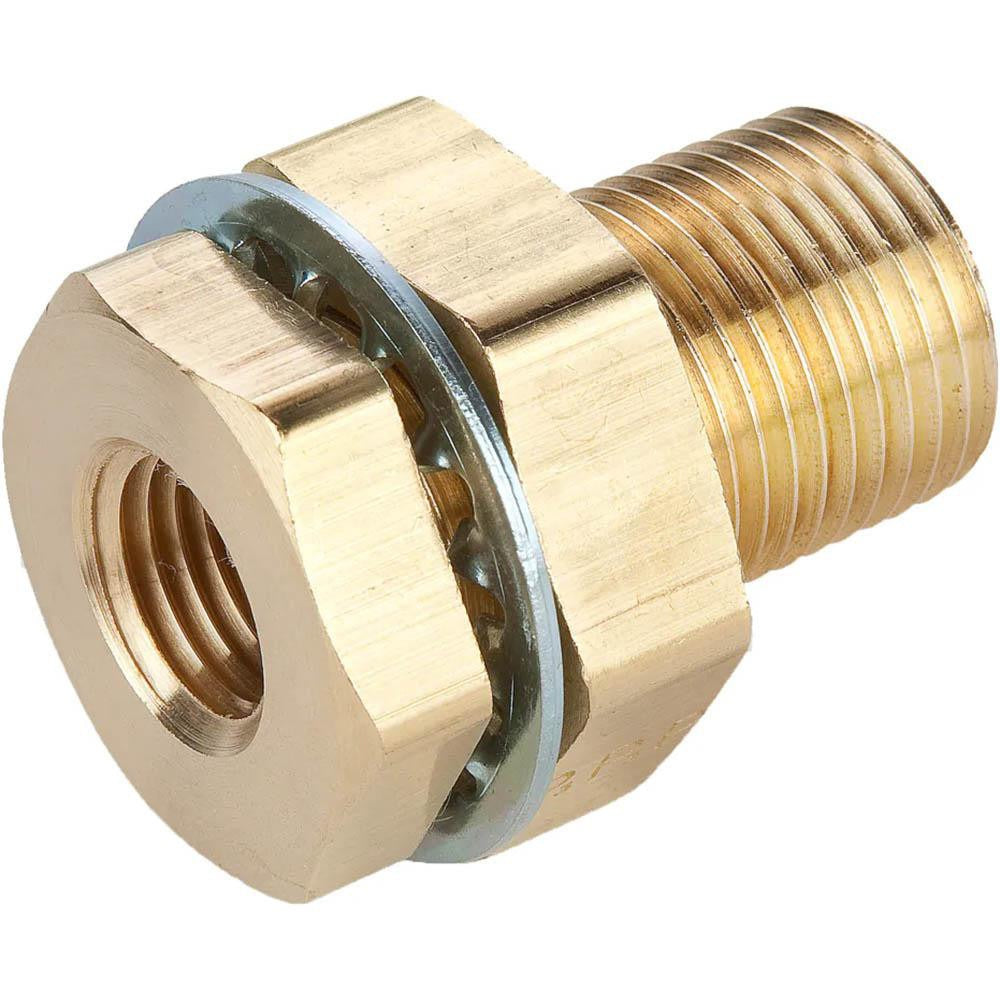

Parker 207ACBHS-2 Anchor Coupling 1000 Psi Nptf

Product Description

The PARKER 207ACBHS-2 is an industrial anchor coupling designed to create a secure, leak-resistant connection between hydraulic or fluid lines in demanding plumbing and industrial piping systems. It features a male straight thread O-ring end on one side and a female NPTF end on the other, with a 5/8-18 male thread and a 1/8 inch female thread. Rated to 1,000 psi maximum working pressure, this fitting handles a wide service temperature range from -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and hydraulic technicians install this type of fitting when a rigid, anchored connection point is required in a pressurized fluid circuit.

The 207ACBHS-2 is suited for residential and commercial fluid piping applications where a straight-thread O-ring face seal is needed on one port and an NPTF tapered thread on the other. It is commonly used in hydraulic systems, compressed air lines, and industrial process piping. The anchor coupling design prevents rotation and movement at the connection point, making it useful in vibration-prone environments. It conforms to SAE J530 and SAE J531 standards, which are commonly specified in hydraulic and pneumatic system assemblies.

Key Features

• Male straight thread O-ring x female NPTF configuration eliminates leak paths at both connection ends
• 1,000 psi maximum working pressure rating for pressurized fluid and hydraulic service
• Wide operating temperature range: -65 degrees F to 250 degrees F
• Anchor coupling design resists rotation and movement under vibration
• Conforms to SAE J530 and SAE J531 standards
• Compact and lightweight at 0.13 pounds

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid piping systems requiring a 5/8-18 male straight thread O-ring connection mated to a 1/8 inch female NPTF port.

Installation Notes

This fitting should be installed by a licensed plumber, pipefitter, or qualified hydraulic technician. Depressurize and isolate the fluid circuit completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the NPTF threads are clean and free of debris. Thread sealant is typically not required on the straight-thread O-ring end but may be applied to the NPTF end per system requirements and applicable codes.
