Parker 20690-5-5 90 Series 20690 Hose X Female JIC Swivel Fittings

Product Description

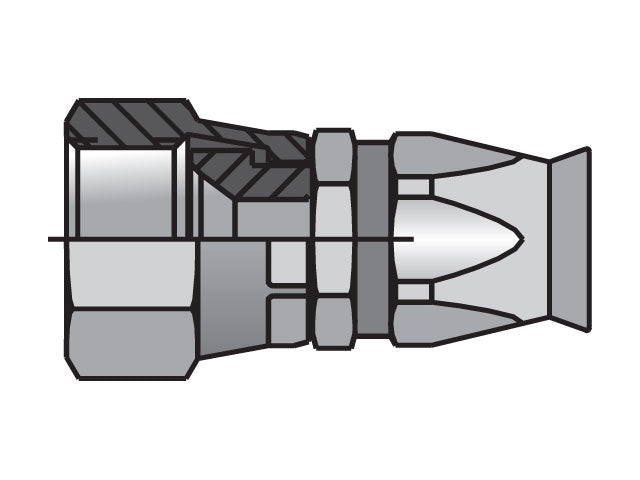

The Parker 20690-5-5 is a part of the 90 Series Reusable Fitting line. This product features a hose end and female JIC swivel fitting designed for reliable connections in thermoplastic hose applications. The configuration includes a field-attachable shell and nipple, allowing for easy assembly and disassembly.

• Reusable fitting designed for thermoplastic hoses
• Field attachable for flexibility in installations
• Available in various materials including brass, steel, and stainless steel

Product Highlights

This fitting is essential for creating secure and leak-proof connections in hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• End 1: 5/16 Inch
• Inner Diameter: 0.25 Inch
• Material: Brass Nipple And Ferrule, Steel Nut And Socket
• UOM: EA
• Series: 90
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Parker Division: Parflex
• Parker Group: Fluid Connector
