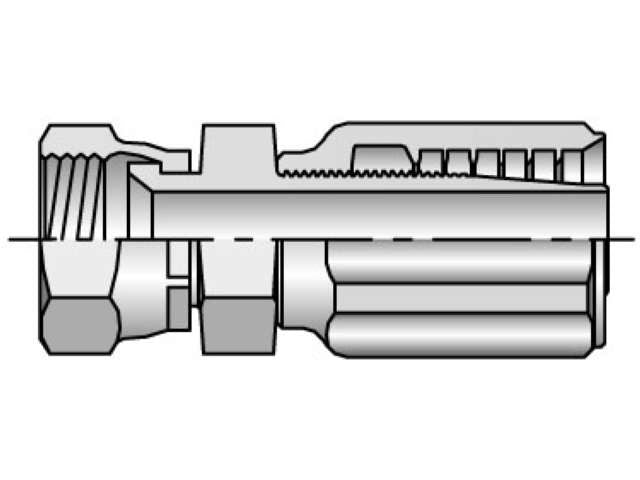

Parker 20642-4-4 42 Series Fitting Female JIC 37° Swivel 20642-4-4

Product Description

The Parker 20642-4-4 is a 42 Series fitting designed for ease of use in the field. This fitting allows for quick and simple assembly without the need for special tools. Its no-skive design means you do not have to remove the outer cover of the hose during assembly, which helps prevent premature failures. This fitting is compatible with various Parker hoses including 421, 431, 436, 482TC, and 482ST.

• No skiving required for assembly
• Field attachable and reusable
• Compatible with multiple hose types

Product Highlights

The Parker 20642-4-4 fitting offers a reliable solution for connecting hoses in hydraulic systems. Its robust design ensures durability in demanding environments.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20642-4-4

Technical Specifications

• End 1: 1/4 Inch
• Inner Diameter: 0.25 Inch
• Material: Steel
• Series: 42
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Parker Division: Hose Products
• Parker Group: Fluid Connector
