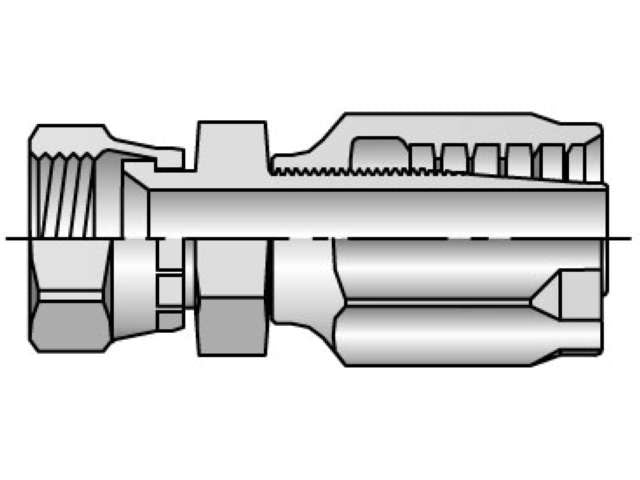

Parker 20630-6-6 30 Series 20630 - Straight Swivel - Female JIC 37°

Product Description

The Parker 20630-6-6 is a 30 Series No-Skive fitting designed for easy and quick assembly in the field. This fitting allows assembly without the need for special tools, making it ideal for quick repairs and installations. By using this fitting, you can avoid the common issue of premature hose failure that occurs with traditional fittings that require skiving.

• Field attachable design for easy assembly
• Compatible with Parker 301 and 381 hoses
• Steel material with zinc dichromate plating

Product Highlights

The 30 Series fitting provides versatility for various hose applications while ensuring solid performance and durability.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20630-6-6

Technical Specifications

• End 1: 3/8 Inch
• Inner Diameter: 0.375 Inch
• Material: Steel
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Series: 30
• Parker Division: Hose Products
• Parker Group: Fluid Connector
