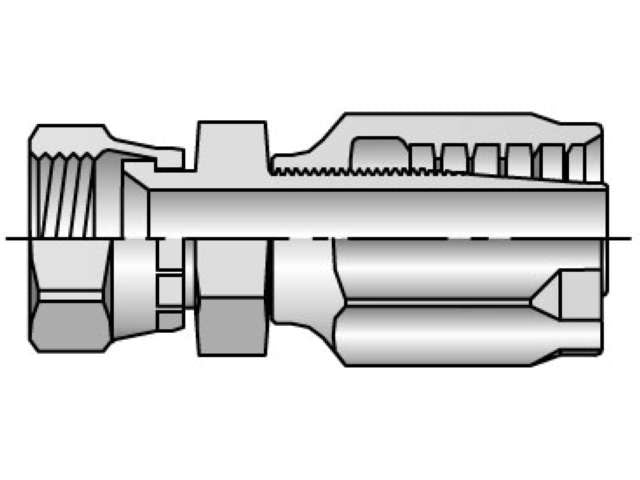

Parker 20630-4-4 30 Series 20630 Field Attachable Shell & Nipple Female JIC 37° - Swivel - Straight

Product Description

The Parker 20630-4-4 is a field attachable fitting from the 30 Series. It allows for quick assembly without the need for special tools. This design enables easy installation in the field, promoting efficiency. The No-Skive feature means you do not have to remove the outer cover of the hose, reducing the risk of premature failure.

• Reusable style fitting allows for quick assembly
• No special tools required for installation
• Compatible with Parker Hydraulic/Braided Hoses 301 and 381

Product Highlights

The Parker 20630-4-4 fitting is designed for ease of use and durability. It supports a variety of applications in hydraulic systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20630-4-4

Technical Specifications

• End 1: 1/4 Inch
• Inner Diameter: 0.25 Inch
• Material: Steel
• Series: 30
• Configuration Type: Female JIC 37° - Swivel - Straight
• Parker Division: Hose Products
• Parker Group: Fluid Connector
• Hose Connection Type: Field Attachable
