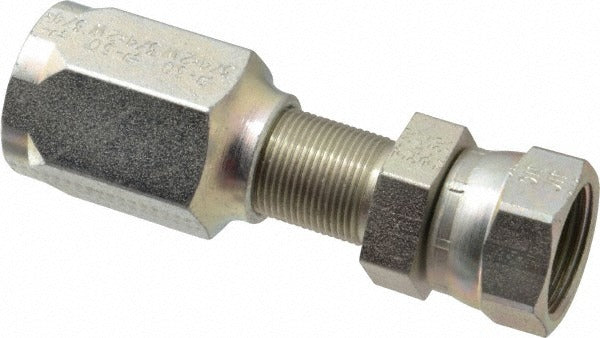

Parker 20630-12-12 Hydraulic Hose Female Swivel Fitting

Product Description

The PARKER 20630-12-12 is a straight female swivel fitting designed for hydraulic hose assemblies. It accepts a 3/4-inch (12 mm) hose inside diameter and features a 1-1/16-12 female JIC threaded connection. Constructed from steel, this fitting is built to handle the mechanical demands of hydraulic lines in industrial and mobile equipment applications. The swivel design allows the hose end to rotate during installation, reducing torsional stress on the hose and making routing easier in tight or angled installations. It measures 3.5 inches in overall length and weighs 0.03 pounds. Licensed hydraulic technicians and fluid power mechanics are the typical installers.

This fitting is used in hydraulic systems where a female JIC swivel end is required at the hose termination point. It is rated for use with Parker Series 30 hoses and is specifically compatible with Parker 301 and 381 hose types. The straight configuration suits direct in-line connections where no elbow or angled adapter is needed. Common applications include mobile hydraulic circuits on construction and agricultural equipment, as well as industrial hydraulic power units requiring reliable threaded swivel connections at hose ends.

Key Features

• Female JIC swivel connection allows hose rotation during assembly to prevent twisting
• 3/4-inch (12 mm) hose inside diameter accommodates Parker Series 12 hose
• 1-1/16-12 thread size for standard JIC female port connections
• Steel construction for durability in high-pressure hydraulic environments
• Straight shape simplifies in-line hose routing
• Manufactured to ISO 9001:2015 quality standards

Compatibility

Designed for use with Parker 301 and 381 hydraulic hoses in Series 30 hose assemblies with a 3/4-inch inside diameter and 1-1/16-12 female JIC thread requirement.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Use proper hydraulic fitting wrenches and follow JIC assembly torque practices per applicable fluid power standards. Inspect hose ends for cleanliness and damage before assembly to prevent contamination of the hydraulic system.
