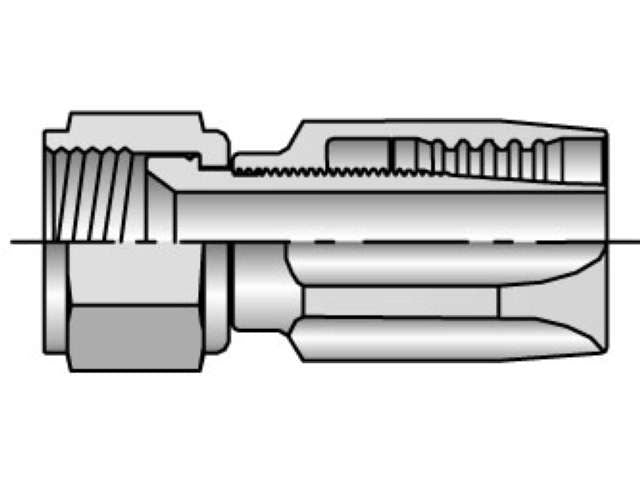

Parker 20622-8-8B 22 Series 20622 Field Attachable Shell & Nipple Female JIC 37° - Swivel - Straight

Product Description

The Parker 20622-8-8B is a component of the 22 Series No-Skive Fittings, designed for easy assembly in the field without the need for special tools. This fitting allows for quick assembly of hoses, eliminating the need to remove the outer cover of the hose. Such design prevents premature hose failure caused by incorrect skiving. The fittings are plated with zinc dichromate and are suitable for various Parker hoses including 201-261, 206, and others.

• Field attachable design for easy assembly
• Compatible with multiple Parker hose types
• Constructed with brass for durability

Product Highlights

The Parker 20622-8-8B fitting features a robust design that ensures reliability in field conditions.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• End 1: 1/2 Inch
• Inner Diameter: 0.406 Inch
• Material: Brass
• UOM: EA
• Series: 22
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Parker Division: Hose Products
