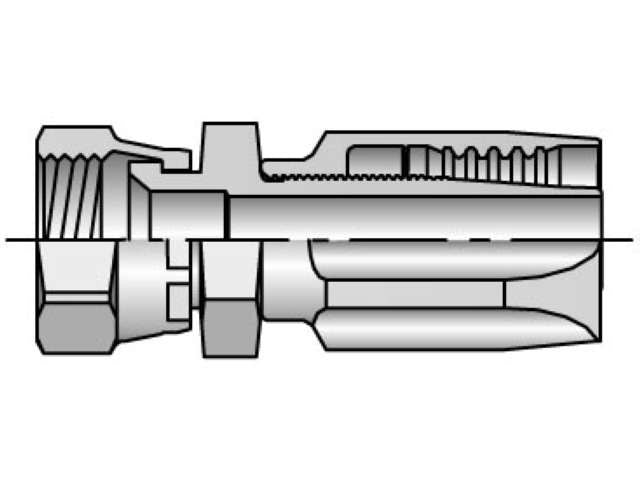

Parker 20620-6-6 20 Series 20620 Field Attachable Shell & Nipple Female JIC 37° - Swivel - Straight

Product Description

The Parker 20620-6-6 is a field attachable fitting designed for easy assembly without special tools. This fitting allows for quick connections in the field, making it an efficient option for hoses. The unique No-Skive design eliminates the need to remove the outer cover of the hose, which reduces the risk of damage during installation.

• Field attachable design for quick hose assembly.
• Compatible with Parker 201-261, 206, and 225 hoses.
• Zinc dichromate plating offers enhanced corrosion resistance.

Product Highlights

The Parker No-Skive fittings are reusable, which makes them a cost-effective solution for many applications.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20620-6-6

Technical Specifications

• End 1: 3/8 Inch
• Inner Diameter: 0.313 Inch
• Material: Steel
• Configuration Type: Female JIC 37° - Swivel - Straight
• Parker Division: Hose Products
• Parker Group: Fluid Connector
• Hose Connection Type: Field Attachable
• Series: 20
