Parker 20620-5-5 Female Jic 37 Deg Swivel Hose Fitting

Product Description

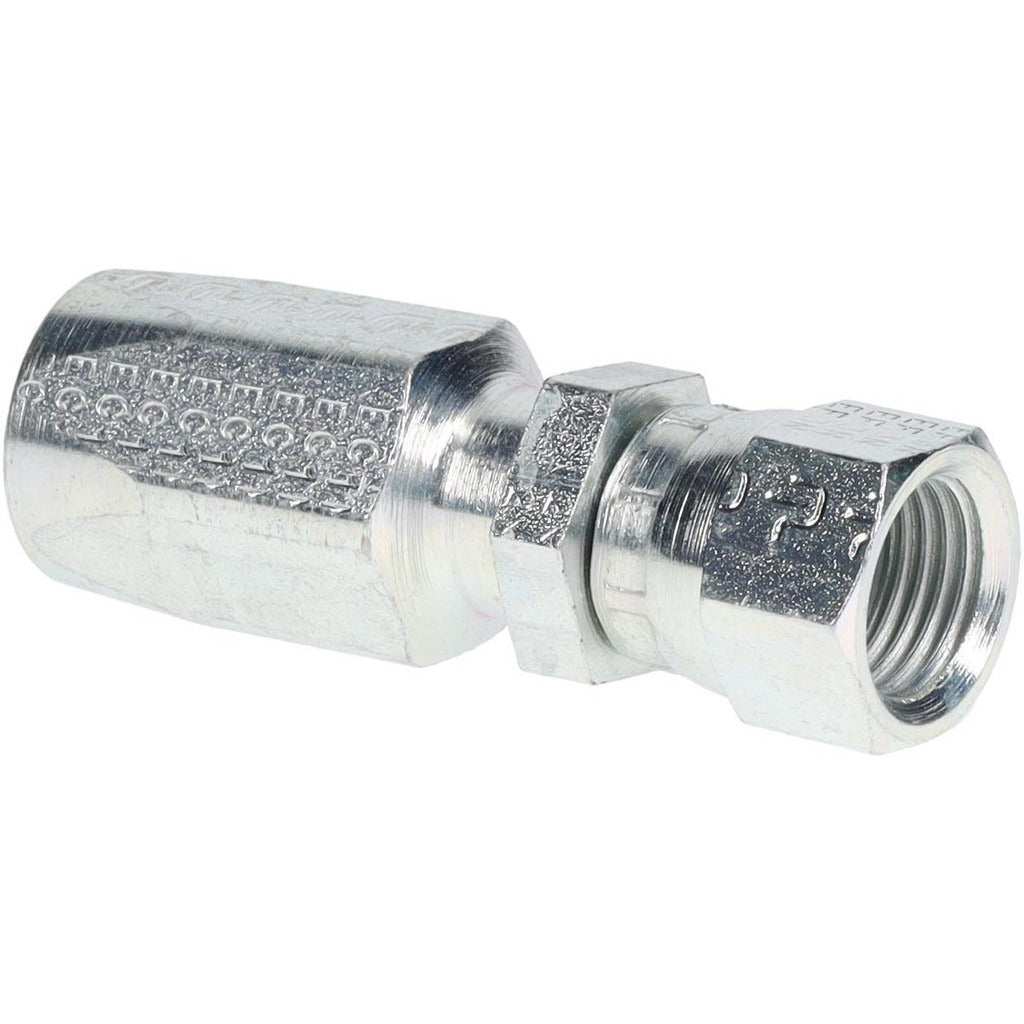

The PARKER 20620-5-5 is a straight, female JIC 37-degree swivel hose fitting designed for hydraulic hose assemblies in fluid power systems. Manufactured from steel with a threaded connection type, this fitting accepts hose with a 0.25-inch inside diameter (hose size 5) and uses a 1/2-20 thread. The swivel design allows the fitting end to rotate during assembly, reducing hose twist and making it easier to achieve proper routing without stressing the hose. It measures 2.12 inches in overall length. Licensed HVAC, hydraulic, or fluid power technicians working with medium-pressure hydraulic circuits will find this a standard-format, OEM-compatible end fitting.

This fitting is part of PARKER Series 20 and is intended for use with hydraulic hose assemblies in industrial and mobile equipment applications. It is suited for residential, commercial, and light industrial hydraulic circuits where a female JIC swivel termination is required at the hose end. The straight configuration makes it appropriate for in-line connections where no directional offset is needed at the port or component interface.

Key Features

• Female JIC 37-degree swivel design reduces hose twist during assembly and installation
• Straight configuration for direct in-line hydraulic connections
• Steel construction for durability in hydraulic fluid service environments
• 1/2-20 thread size with 0.25-inch hose inside diameter (hose size 5)
• 2.12-inch overall length for compact fitting envelope
• Manufactured to ISO 9001:2015 quality standards

Compatibility

Designed for use with PARKER hose series 201-261, 206, 221FR, 225, 235, 266, and SS25UL. Hose inside diameter must be 0.25 inches (hose size 5) and hose outside diameter at the fitting end must correspond to a 5/16-inch hose diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic circuit completely before disassembling any hose or fitting. Inspect the hose end for clean, square cuts and confirm the hose inside diameter matches the fitting before crimping or swaging. Follow applicable industry standards and equipment manufacturer torque and assembly specifications when making up JIC swivel connections.
