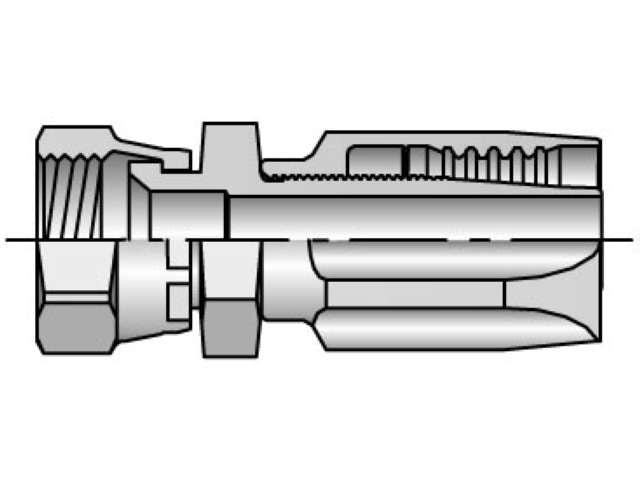

Parker 20620-20-20 20 Series 20620 Power (Size/Quantity) Replacement MPN

Product Description

The Parker 20620-20-20 is a field attachable fitting designed for easy assembly without special tools. This fitting is compatible with Parker 201-261, 206, 221FR, 225, 235, 266, and SS25UL hoses. It’s part of Parker's 20 Series No-Skive fittings.

• Features field attachable design allowing quick assembly
• Prevents premature hose failure by eliminating the need for skiving
• Constructed from steel with zinc dichromate plating for durability

Product Highlights

The 20 Series fittings provide a secure and reliable connection for various hoses. Ideal for applications where flexibility and reliability are needed.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20620-20-20

Technical Specifications

• End 1: 1 1/4 Inch
• Inner Diameter: 1.125 Inch
• Material: Steel
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Series: 20
• Parker Division: Hose Products
• Parker Group: Fluid Connector
