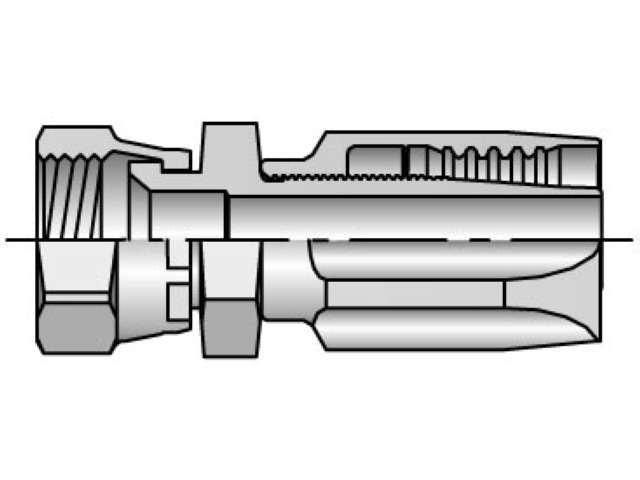

Parker 20620-12-12 20 Series 20620 Field Attachable Shell & Nipple Female JIC 37° - Swivel - Straight

Product Description

The Parker 20620-12-12 is a hose fitting designed for quick and easy field assembly without the need for special tools. This fitting uses a field attachable style which allows for reusable connections. It is compatible with No-Skive hose, eliminating the potential for premature failure caused by improper skiving. This product is suitable for use with a variety of Parker hoses, including the 201-261 and 225 series.

• Field attachable design allows for quick assembly
• No special tools required for installation
• Compatible with Parker 201-261 and SS25UL hose types

Product Highlights

The Parker 20 Series fittings feature robust construction with zinc dichromate plating for improved durability.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20620-12-12

Technical Specifications

• End 1: 3/4 Inch
• Inner Diameter: 0.625 Inch
• Material: Steel
• Series: 20
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Parker Group: Fluid Connector
• Parker Division: Hose Products
