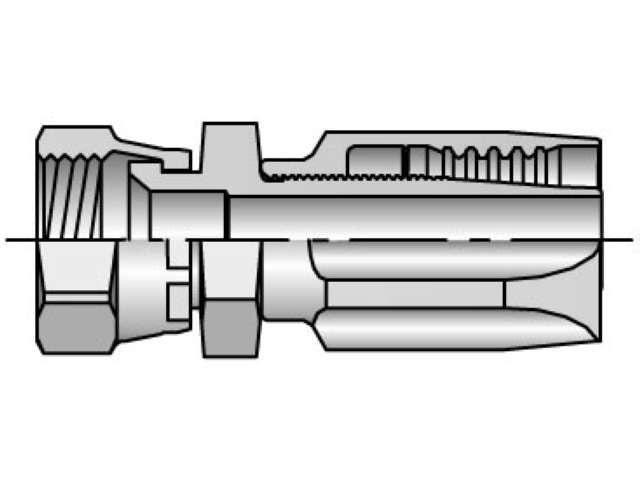

Parker 20620-10-10 20 Series 20620 Field Attachable Shell & Nipple Female JIC 37° - Swivel - Straight

Product Description

The Parker 20620-10-10 is a field attachable fitting designed for quick assembly without the need for special tools. This no-skive style fitting allows assembly without removing the outer cover of the hose, preventing premature failure caused by improper skiving. It is compatible with several Parker hoses including the 201, 206, and 221FR series.

• Field attachable for easy installation
• Zinc dichromate plating for corrosion resistance
• Compatible with various Parker hoses

Product Highlights

Efficient field assembly without special tools, reducing installation time and potential for errors.

Product Information

Standard Information

• Manufacturer: Parker
• Warning: Products may contain chemicals known to the State of California to cause birth defects, cancer, or other reproductive harm.

Technical Specifications

• End 1: 5/8 Inch
• Inner Diameter: 0.5 Inch
• Material: Steel
• Series: 20
• Configuration Type: Female JIC 37° - Swivel - Straight
• Hose Connection Type: Field Attachable
• Parker Group: Fluid Connector
• Parker Division: Hose Products
