PARKER 20330-4-4 PIPE FITTINGS
PARKER 20330-4-4 PIPE FITTINGS

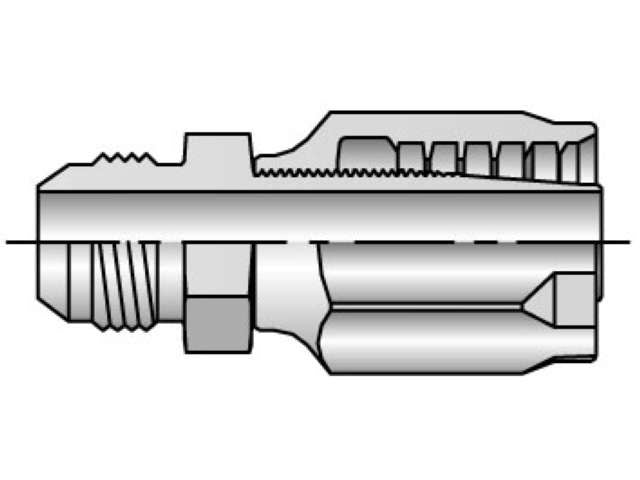

Parker 20330-4-4 30 Series 20330 Male JIC 37° - Rigid - Straight

Brand: PARKER
SKU: 20330-4-4
Availability: Out Of Stock

Earn [points_amount] when you buy this item.
$53.23
$53.23
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Parker 20330-4-4 is designed for quick-field assembly. This fitting allows easy installation without the need for special tools. The field attachable style reduces the risk of hose failure by eliminating the need to remove the outer cover of the hose.

  • Field attachable design for easy installation
  • Prevents premature hose failure
  • Compatible with Parker 301 and 381 hoses

Product Highlights

This fitting is built with zinc dichromate plating and suitable for hydraulic applications.

Product Information

Standard Information

  • Brand: Parker
  • Manufacturer: Parker

Technical Specifications

  • End 1: 1/4 Inch
  • Inner Diameter: 0.25 Inch
  • Material: Steel
  • Series: 30
  • Configuration Type: Male JIC 37° - Rigid - Straight
  • Hose Connection Type: Field Attachable
  • Inner Diameter Inch/mm: Inch
  • Parker Division: Hose Products
  • Parker Group: Fluid Connector
