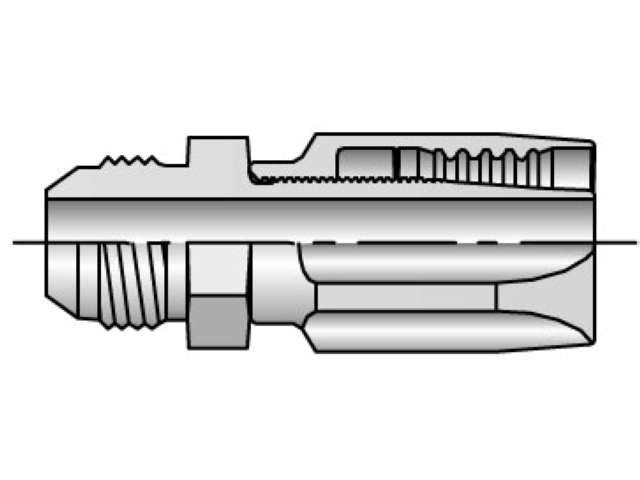

Parker 20320-4-4 20 Series 20320 Male JIC 37° - Rigid - Straight Replacement MPN

Product Description

The Parker 20320-4-4 is a fitting designed for easy field assembly without the need for special tools. It is a reusable fitting that simplifies the connection process, allowing for a quick assembly of No-Skive hoses. The design reduces the risk of hose failure by eliminating the need to remove the hose cover. This fitting is suitable for various Parker hoses, including models 201-261 and 225.

• Field attachable design allows for quick connections
• Compatible with No-Skive hose types
• Constructed from durable steel material

Product Highlights

This fitting supports efficient assembly and reliable performance in fluid connector applications.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• End 1: 1/4 Inch
• Inner Diameter: 0.188 Inch
• Material: Steel
• UOM: EA
• Series: 20
• Configuration Type: Male JIC 37° - Rigid - Straight
• Hose Connection Type: Field Attachable
• Parker Division: Hose Products
