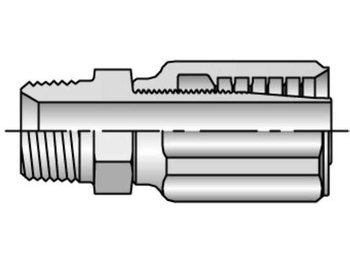

Parker 20142-2-4 42 Series 20142 Male NPTF Pipe Rigid Straight

Product Description

The Parker 20142-2-4 is a fitting from the 42 Series designed for field assembly. Its reusable style allows for quick connection without the need for special tools. This fitting works well with Parker’s 421, 431, 436, 482TC, and 482ST hoses.

• Field attachable, reusable fitting.
• Supports 1/8 inch end connection size.
• Compatible with a range of Parker hydraulic hoses.

Product Highlights

Designed for easy field assembly, the Parker 42 Series fitting eliminates issues caused by skiving. The innovative design permits assembly without removing the outer cover of the hose, which enhances durability and reduces the risk of failure.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 20142-2-4

Technical Specifications

• End 1: 1/8 Inch
• Inner Diameter: 0.25 Inch
• Material: Steel
• Series: 42
• Configuration Type: Male NPTF Pipe - Rigid - Straight
• Hose Connection Type: Field Attachable
• Parker Group: Fluid Connector
• Parker Division: Hose Products
