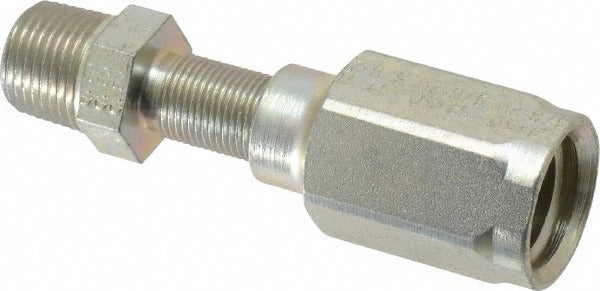

Parker 20130-6-6 Male Rigid Pipe Fitting 3/8 Inch Nptf

Product Description

The PARKER 20130-6-6 is a male rigid pipe fitting designed for hydraulic hose assemblies. This straight-body fitting accepts a 3/8-inch (size 6) hose with a 0.375-inch inside diameter and terminates with a 3/8-18 male NPTF threaded connection. Constructed from steel, it delivers the mechanical strength required for pressurized hydraulic lines in demanding service environments. The overall length measures 2.58 inches. Licensed hydraulic technicians and fluid-power specialists install this fitting when building or repairing hose assemblies that require a rigid, leak-resistant pipe thread termination. It is manufactured under ISO 9001:2015 quality standards.

This fitting is used in hydraulic system assemblies where a rigid, straight hose-end connection is required. It is part of PARKER Series 30 and is rated for use with Parker 301 and 381 hoses. Typical applications include mobile equipment, industrial hydraulic circuits, and other fluid-power systems that call for a male NPTF threaded port connection at the hose end. The straight configuration suits installations where routing allows a direct, in-line hose-to-port connection without angled adapters.

Key Features

• Male NPTF thread provides a pressure-tight, tapered pipe thread seal without additional sealant in many applications
• Steel construction offers high tensile strength suitable for hydraulic service
• Straight-body shape simplifies in-line hose routing
• Compatible with Parker 301 and 381 hose series for direct OEM-style assembly
• Manufactured to ISO 9001:2015 quality standards
• Size 6 hose end fits 3/8-inch ID hydraulic hose

Compatibility

Designed for use with Parker 301 and 381 hoses. This fitting is part of the Parker Series 30 hydraulic hose fitting line and is matched to size 6, 3/8-inch inside diameter hose ends.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. NPTF tapered threads rely on thread interference for sealing — inspect threads for damage before assembly and apply thread sealant only as required by system specifications and applicable standards. Torque the fitting according to the hose and system manufacturer guidelines; do not over-tighten, as this can damage the thread form or fitting body.
