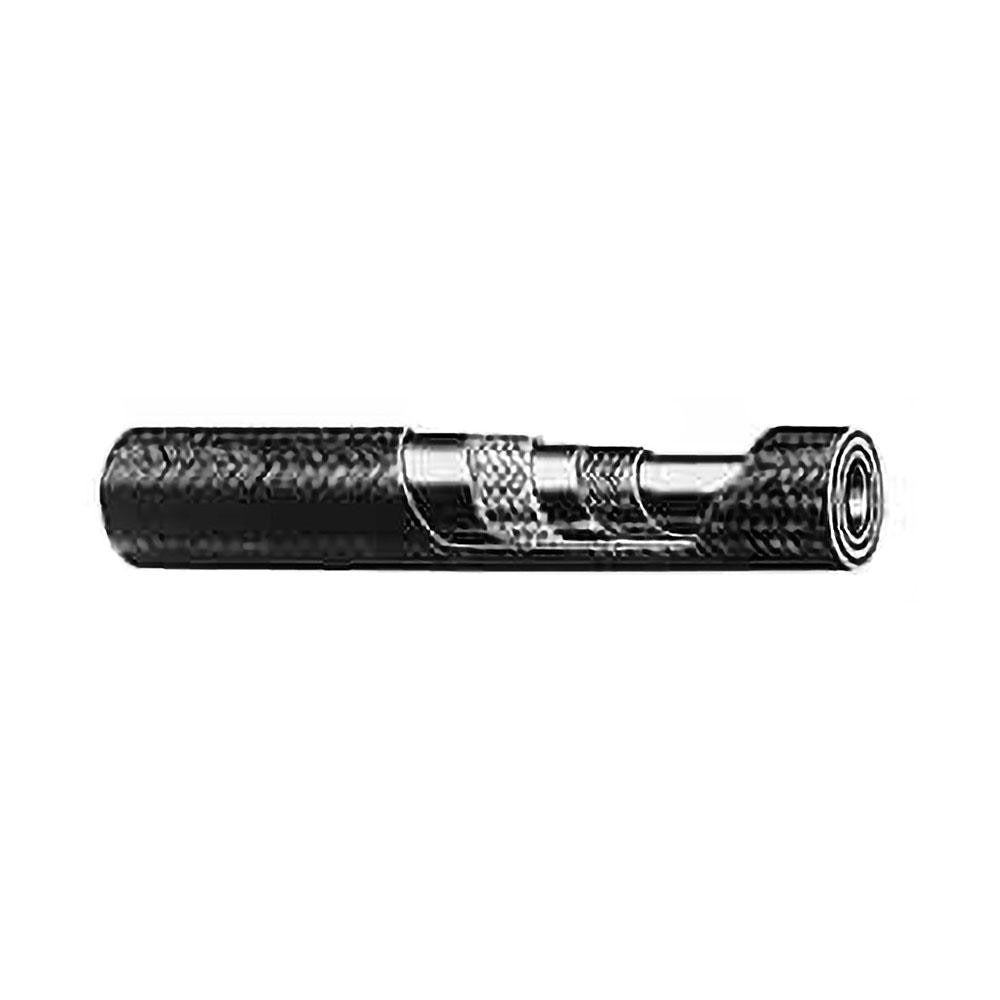

Parker 201-8-RL-250 Hydraulic Hose 2000 Psi 13/32 Inch Id

Product Description

The PARKER 201-8-RL-250 is a synthetic rubber hydraulic hose designed for high-pressure fluid transfer in mobile and industrial hydraulic systems. Rated for 2,000 psi working pressure, this hose handles demanding service conditions across a temperature range of -40 degrees F to 302 degrees F. The -8 hose size features a 13/32-inch inner diameter. It meets DOT FMVSS 106 Air Brake-AII, SAE J1402 AII, and SAE J517 100R5 standards, making it a code-compliant choice for licensed mechanics, hydraulic system technicians, and equipment service professionals working on air brake and hydraulic circuits.

This hose is sold in 250-foot coils with a minimum cut length of 20 feet, priced in 1-foot increments. The Series 201 construction is suited for a wide range of hydraulic applications including mobile equipment, commercial vehicles, and industrial machinery where consistent pressure performance and broad temperature tolerance are required. The black synthetic rubber outer jacket resists abrasion and weathering in typical field service environments.

Key Features

• 2,000 psi working pressure rating for demanding hydraulic circuits
• 13/32-inch inner diameter (-8 hose size) for compatible fitting systems
• Synthetic rubber construction rated from -40 degrees F to 302 degrees F
• Meets DOT FMVSS 106 Air Brake-AII, SAE J1402 AII, and SAE J517 100R5 standards
• Sold as a 250-foot coil, priced per foot with a 20-foot minimum cut length
• Black outer jacket resists abrasion and environmental exposure

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic hose for mobile and industrial hydraulic systems requiring -8 hose size fittings and 2,000 psi working pressure rated to SAE J517 100R5 and SAE J1402 AII specifications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed mechanic familiar with high-pressure fluid system service. Depressurize and isolate the hydraulic circuit fully before removing or installing any hose assembly. Use properly rated -8 series fittings and follow SAE J517 and applicable equipment manufacturer guidelines for assembly and routing. Avoid sharp bends below the minimum bend radius and protect the hose from contact with hot surfaces or sharp edges in the routing path.
