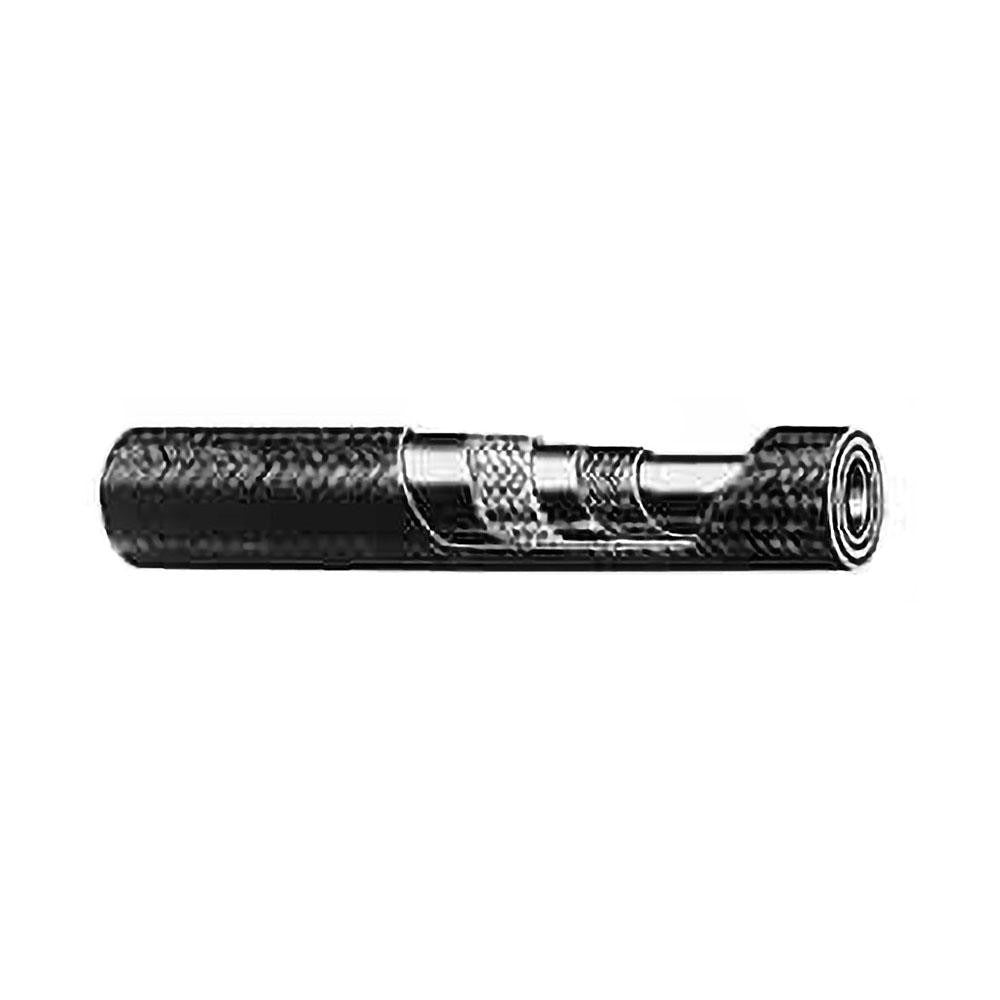

Parker 201-5-RL-250 Hydraulic Hose 3000 Psi 1/4 in Id

Product Description

The PARKER 201-5-RL-250 is a Series 201 synthetic rubber hydraulic hose rated for 3,000 psi working pressure with a 1/4 inch inner diameter. Sold in 1-foot increments from a 250-foot coil, it carries a minimum cut length of 20 feet per order. The hose handles a temperature range of -40 degrees F to 302 degrees F, making it suitable for demanding hydraulic and air brake circuits. Its black synthetic rubber construction provides flexibility and resistance to petroleum-based hydraulic fluids. Licensed plumbers, hydraulic system technicians, and fleet maintenance professionals install this hose in both mobile and stationary hydraulic applications.

This hose is built to DOT FMVSS 106 Air Brake-AII, SAE J1402 AII, and SAE J517 100R5 standards, positioning it for use in air brake systems, hydraulic power circuits, and related fluid-transfer lines on commercial vehicles, agricultural equipment, and industrial machinery. The -5 hose size designation and 1/4 inch ID suit low-to-medium flow hydraulic circuits requiring compact routing. Installers working on fleet vehicles or OEM hydraulic assemblies will find this hose meets the pressure and temperature demands of typical mobile hydraulic systems.

Key Features

• 3,000 psi rated working pressure for medium-duty hydraulic circuits
• 1/4 inch inner diameter, -5 hose size designation
• Synthetic rubber construction rated from -40 degrees F to 302 degrees F
• Meets DOT FMVSS 106 Air Brake-AII, SAE J1402 AII, and SAE J517 100R5 standards
• Sold in 1-foot increments with a 20-foot minimum cut length from a 250-foot coil
• Black outer jacket resists abrasion and petroleum-based fluids

Compatibility

Designed as an OEM-style replacement or new-installation hose for hydraulic and air brake systems requiring a -5 hose size, 1/4 inch ID, and 3,000 psi working pressure rating in compliance with SAE J517 100R5 and SAE J1402 AII specifications.

Installation Notes

Hydraulic hose assembly and installation should be performed by a qualified hydraulic technician or licensed mechanic. Depressurize and bleed the hydraulic or air brake circuit fully before cutting, fitting, or replacing hose sections. Use proper hydraulic hose cutters to achieve a clean, square cut and ensure compatible Parker-series fittings are crimped with calibrated crimping equipment. Verify system pressure ratings and temperature exposure before installation to confirm suitability.
