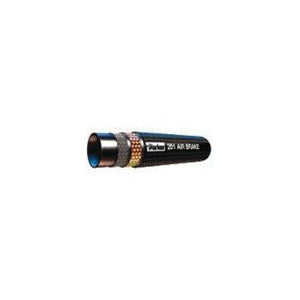

Parker 201-5-RL 2-Braid Transportation Hose 1/4 in Nominal 3000 psi Working

Product Description

Parker 201-5-RL is a transportation hose designed for working pressures up to 3000 psi. This hose features a two-braid construction with both steel and fiber, ensuring strength and flexibility needed for various applications. The hose's fiber cover offers protection in tough environments. It meets SAE J517 100R5 and other performance specifications, making it suitable for air brake systems and other rugged uses.

• Working pressure of 3000 psi
• Compatible with Parkrimp fittings
• Temperature rating of -40 to 302 degrees Fahrenheit

Product Highlights

The Parker 201 series hose is ideal for transportation and industrial applications that require high pressure and durability.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 201-5-RL

Technical Specifications

• Color: Black
• Type: 2-Braid
• Nominal Size: 1/4 in
• Outside Diameter: 0.58 in
• Working Pressure: 3000 psi
• Temperature Rating: -40 to 302 degrees Fahrenheit
• Material: Fiber Cover/Fiber Braid/Synthetic Rubber Inner Tube/Steel Braid
• Series: 201
