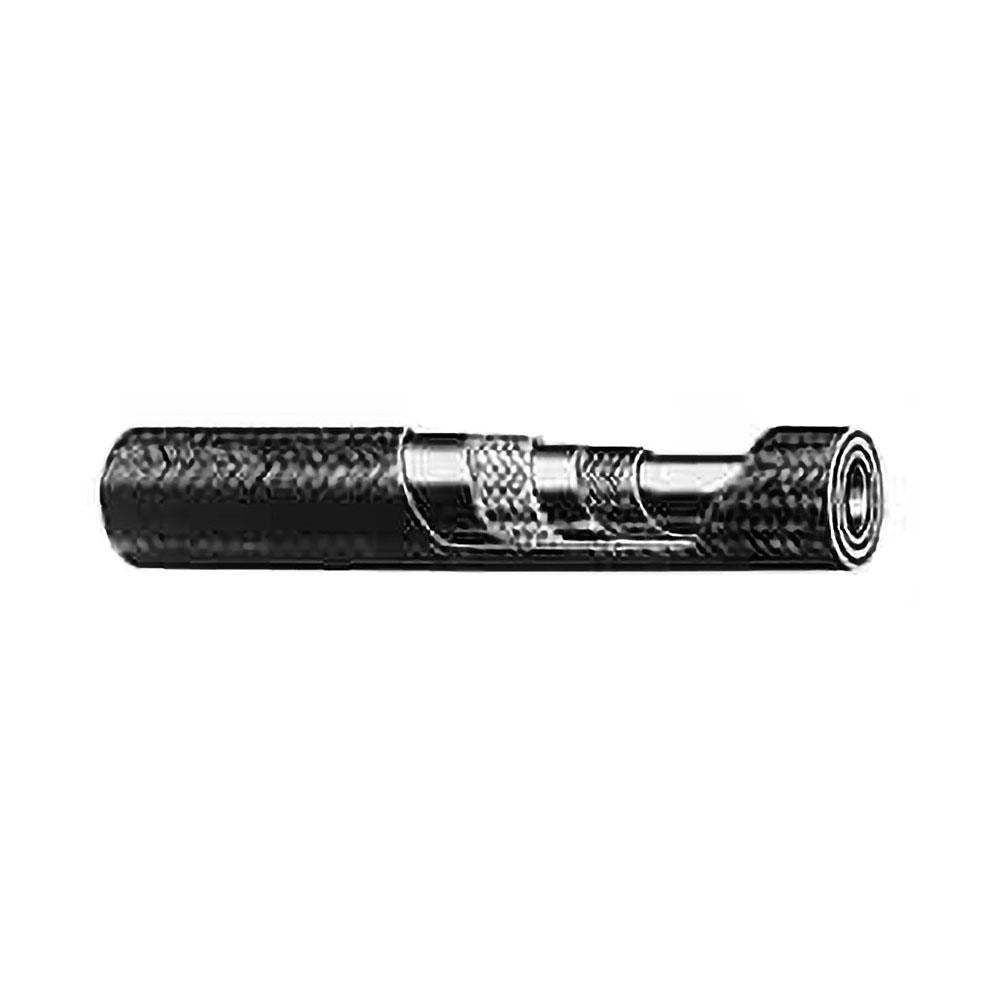

Parker 201-12-RL Hydraulic Hose 1500 Psi 5/8 Inch Id

Product Description

The PARKER 201-12-RL is a Series 201 hydraulic hose built for high-pressure fluid transfer in hydraulic systems. It carries a 1,500 psi working pressure rating and features a 5/8 inch inner diameter, making it suited for mid-range hydraulic circuits where reliable flow and pressure containment are required. The hose is constructed from synthetic rubber and maintains performance across a wide temperature range of -40 degrees F to 302 degrees F. It is sold in 1-foot increments with a 5-foot minimum cut length and ships from a 240-foot coil. Installation is typically performed by hydraulic system technicians and mobile equipment mechanics.

This hose is intended for hydraulic applications requiring DOT and SAE compliance, including air brake and general hydraulic service on mobile equipment, commercial vehicles, and industrial machinery. The -12 hose size designation corresponds to a 5/8 inch inner diameter, which fits a broad range of standard hydraulic fittings and assemblies used in these environments. Its black synthetic rubber construction resists oil, abrasion, and environmental exposure in typical field and shop conditions.

Key Features

• 1,500 psi working pressure rating for mid-range hydraulic circuits
• 5/8 inch inner diameter, hose size -12
• Synthetic rubber construction for oil and abrasion resistance
• Temperature rated from -40 degrees F to 302 degrees F
• Sold by the foot in 1-foot increments with a 5-foot minimum cut length
• Available from a 240-foot coil for custom-length cuts

Compatibility

Meets DOT FMVSS 106 AIR BRAKE-AII, SAE J1402 AII, and SAE J517 100R5 standards. Designed as an OEM-style replacement or new-installation hose for hydraulic and air brake systems requiring -12 size, 5/8 inch ID hose conforming to these specifications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mobile equipment mechanic familiar with high-pressure hose assemblies. Depressurize and isolate the hydraulic circuit fully before cutting, routing, or connecting hose. Use proper hose cutting tools to ensure a clean, square cut, and verify fitting compatibility with the hose end before assembly. Follow SAE and applicable equipment manufacturer guidelines for routing, bend radius, and securing the hose away from heat sources and moving parts.
