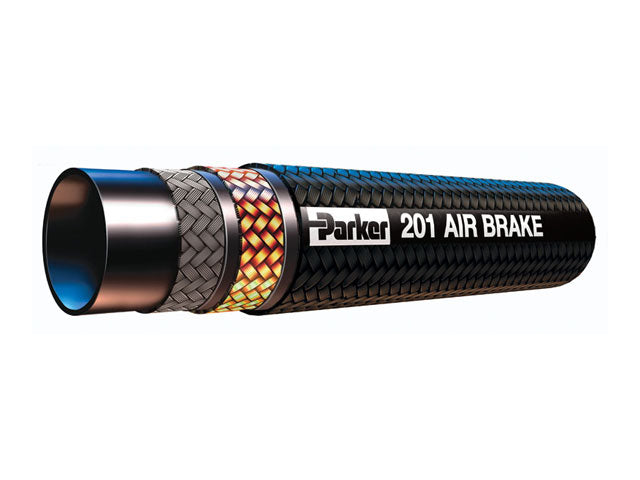

Parker 201-12-RL 201 Series Low Pressure Rubber Transportation Hose

Product Description

The Parker 201-12-RL is a low pressure rubber transportation hose designed for various applications including air brake systems. This hose works effectively with petroleum-based hydraulic fluids, diesel fuels, lubricating oils, and antifreeze solutions.

• Effective for transportation applications
• Constructed from synthetic rubber with fiber and steel reinforcement
• Rated for a working pressure of 1500 PSI

Product Highlights

Durable construction and designed for low pressure applications.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Inner Diameter: 0.625 Inch
• Working Pressure: 1500 PSI (100 bar)
• Material: Rubber
• Mating Fitting Series: 26, 20, 22
• Unit of Measure: FT
• Hose Category: Transportation
• Application: Transportation
• Series: 201
• Hose Pressure Range: Low
• Working Pressure Range: 1000 to 1999 PSI (69 to 138 bar)
• Parker Division: Hose Products
• Specification: SAE 100R5, SAE J1402 AII, D.O.T. FMVSS 106 AII - AIR BRAKE
• Specific Application: Air brake systems
