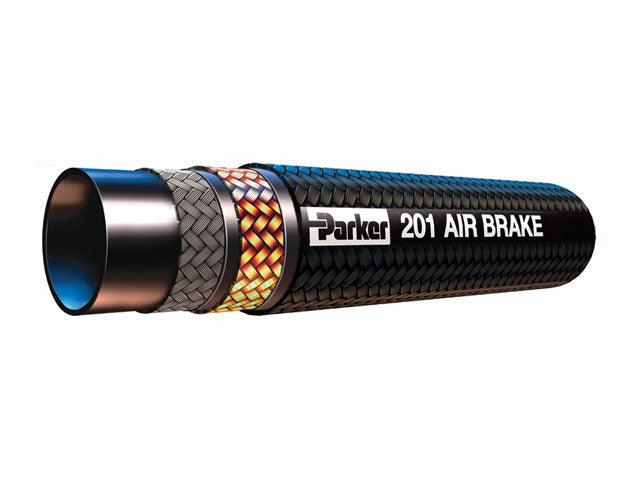

Parker 201-10-RL 201 Series Low Pressure Rubber Transportation Hose

Product Description

The Parker 201-10-RL is a low pressure rubber transportation hose designed for general purpose air-brake applications. This hose accommodates petroleum-based hydraulic fluids, lubricating oils, diesel fuels, and antifreeze solutions.

• Inner tube made of synthetic rubber for durability
• Reinforced with one fiber braid and one steel braid
• Working pressure up to 1750 PSI (120 bar)

Product Highlights

This hose is ideal for air brake systems and other transportation applications where flexible and reliable connections are needed.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 201-10-RL

Technical Specifications

• Inner Diameter: 0.5 Inch
• Working Pressure: 1750 PSI (120 bar)
• Material: Rubber
• Mating Fitting Series: 26, 20, 22
• Hose Category: Transportation
• Application: Transportation
• Hose Pressure Range: Low
• Specification: SAE 100R5 SAE J1402 AII, D.O.T. FMVSS 106 AII - AIR BRAKE
