Parker 2-6 Fbz-ss Compression Tube Connector Ss 10900 Psi

Product Description

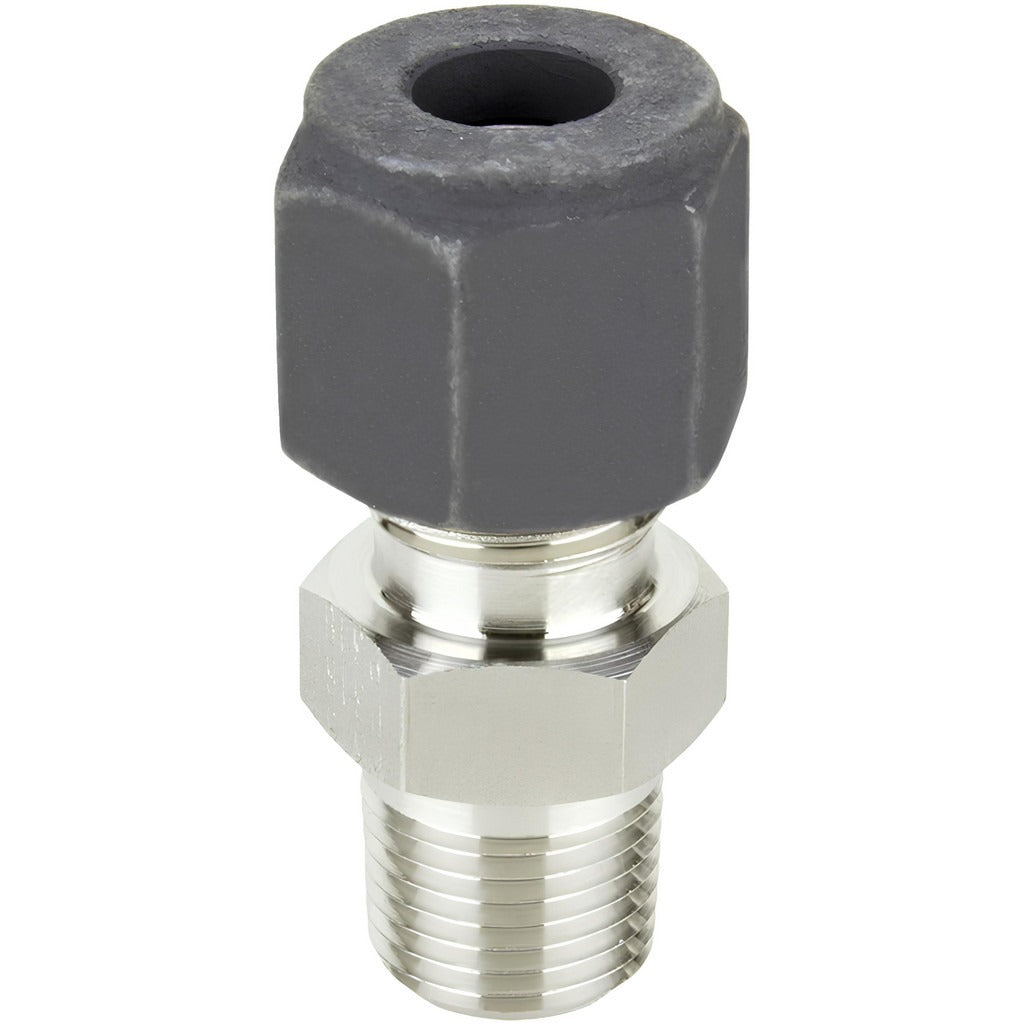

The PARKER 2-6 FBZ-SS is a stainless steel compression tube connector designed to join 1/8 inch OD tubing to a male NPT threaded port. It provides a secure, leak-resistant mechanical connection without the need for soldering or flaring. The compression-to-MNPT configuration makes it well suited for instrument tubing runs, hydraulic lines, and process piping where a reliable threaded transition is required. Rated to a maximum working pressure of 10,900 psi, this fitting handles demanding service conditions. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This connector is used in applications requiring a transition from compression tubing to a male NPT threaded connection. It is commonly installed in high-pressure instrumentation systems, hydraulic circuits, pneumatic control lines, and process fluid handling assemblies found in both industrial and commercial settings. The stainless steel construction makes it appropriate for corrosive environments or installations that must meet sanitary or chemical-resistance requirements.

Key Features

• Stainless steel body provides corrosion resistance for demanding service environments
• Compression x MNPT end connections allow direct transition from tubing to threaded port
• 1/8 inch tube outside diameter compatible with standard instrument tubing
• Maximum working pressure of 10,900 psi suits high-pressure process and hydraulic applications
• MPT thread standard for broad compatibility with standard NPT-threaded ports
• No soldering or flaring required for installation

Compatibility

Designed as an OEM-style compression fitting for use with 1/8 inch OD tubing and standard male NPT threaded ports in high-pressure instrumentation, hydraulic, and process piping systems.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or instrumentation technician following applicable code requirements such as ASME B31.3 for process piping. Depressurize and isolate the system completely before removing or installing any compression fittings. Hand-tighten the compression nut first, then advance with a wrench per standard compression fitting practice — do not overtighten, as this can deform the ferrule and compromise the seal. Inspect the tubing end for squareness and burrs before assembly to ensure a leak-free connection.
