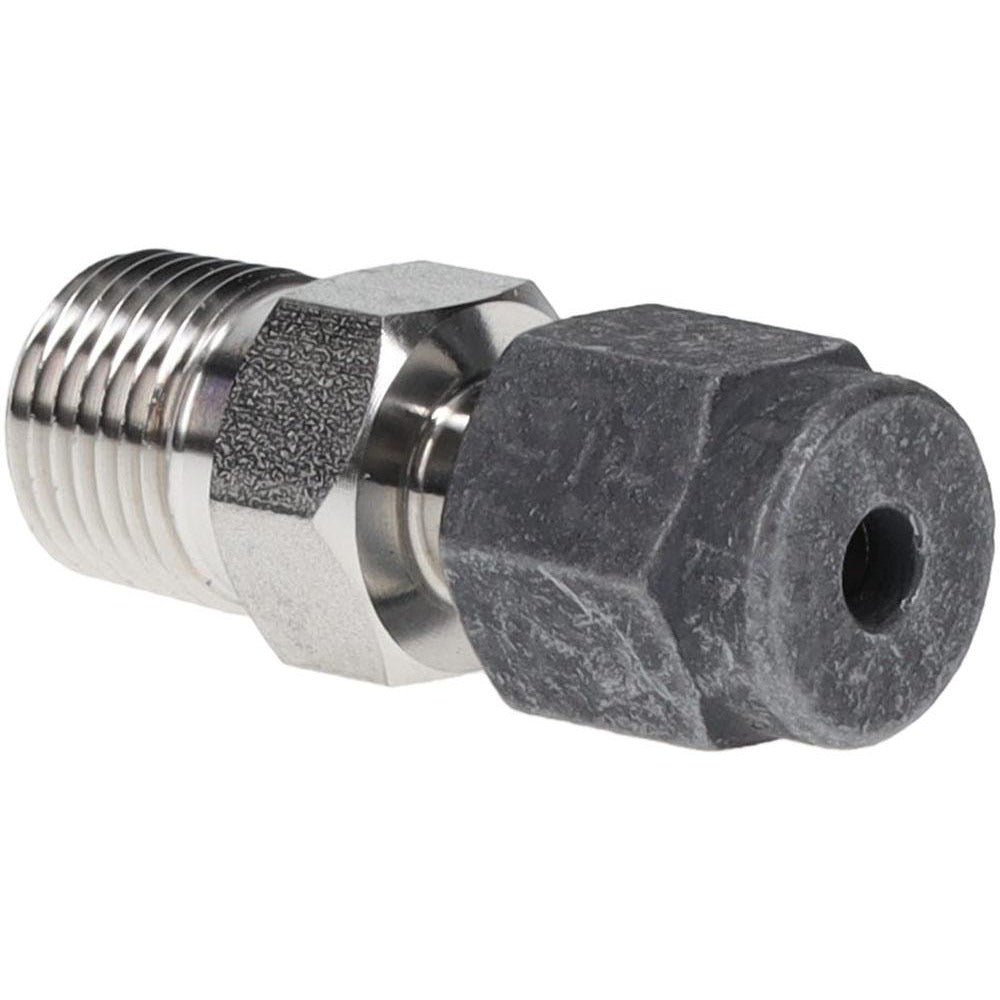

Parker 2-2 Fbz-ss Compression Tube Connector 1/8 in Ss

Product Description

The PARKER 2-2 FBZ-SS is a stainless steel compression tube connector designed to join 1/8-inch OD tubing to a male NPT threaded port. It creates a secure, leak-resistant connection without the need for ferrule pre-assembly tools in most installations. Rated to 10,900 psi maximum working pressure, this fitting is suited for high-pressure instrumentation, hydraulic, and process fluid lines. The overall length is 1.2 inches. Plumbers, HVAC technicians, and instrumentation pipefitters working with stainless steel tubing systems will find this connector a direct, reliable solution for tube-to-pipe transitions.

This fitting is appropriate for use in residential and commercial applications where corrosion resistance and high working pressure are required. Typical install scenarios include instrumentation tubing runs, pneumatic control lines, refrigeration sensing lines, and other fluid or gas systems requiring a compression-to-NPT transition. The stainless steel construction makes it well-suited for harsh environments, exposure to moisture, or use with aggressive media. It accepts 1/8-inch OD tubing on the compression end and threads directly onto a standard male NPT port.

Key Features

• Stainless steel construction for corrosion resistance in demanding environments
• Rated to 10,900 psi maximum working pressure
• Compression x MNPT end connections for tube-to-pipe transitions
• Accepts 1/8-inch OD tubing on the compression side
• Compact overall length of 1.2 inches for tight installation spaces
• Single-piece package, sold individually

Compatibility

Designed as an OEM-style compression tube connector for use with 1/8-inch OD tubing systems requiring a male NPT threaded port connection in instrumentation, pneumatic, or process piping applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified instrumentation technician in accordance with applicable IPC and system-specific codes. Depressurize and isolate the line completely before removing any existing fittings or making new connections. Thread the MNPT end into the receiving port using an appropriate thread sealant or tape rated for the media and pressure involved. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
