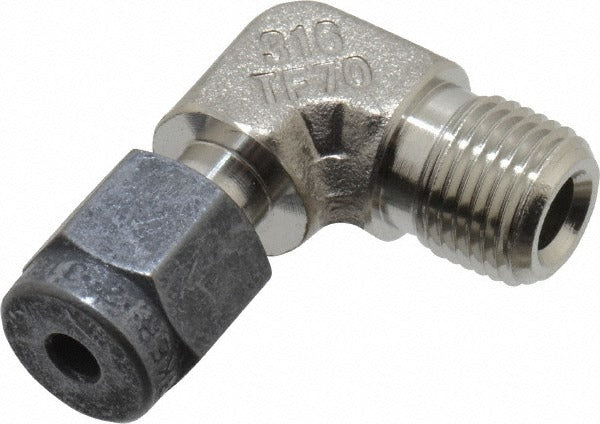

Parker 2-2 Cbz-ss Compression Male Elbow 1/8 in Ss

Product Description

The PARKER 2-2 CBZ-SS is a compression tube male elbow fitting designed to connect tubing to a male NPT threaded port at a 90-degree angle. Constructed from stainless steel, it provides strong corrosion resistance in demanding fluid and gas system applications. The fitting transitions from a compression-style tube end to a 1/8 inch MNPT thread, rated for a maximum working pressure of 10,900 psi. It is installed by licensed plumbers, HVAC technicians, instrumentation technicians, and other trade professionals working with high-pressure tubing systems.

This fitting is suited for use in instrumentation, hydraulic, pneumatic, and process piping applications where a reliable tube-to-pipe transition is required. Its stainless steel construction makes it appropriate for corrosive environments, high-pressure service lines, and systems handling aggressive media. The compression end eliminates the need for flaring or soldering, allowing for straightforward field assembly in tight or confined installations.

Key Features

• Stainless steel construction for corrosion resistance in harsh service environments
• Compression x MNPT end connections for tube-to-pipe transitions without flaring
• 1/8 inch NPT male thread for direct connection to standard pipe ports
• Rated to 10,900 psi maximum working pressure
• 90-degree elbow geometry for routing tubing in space-constrained installations

Compatibility

Designed as an OEM-style compression tube fitting for use in high-pressure instrumentation, pneumatic, and fluid system piping with 1/8 inch MNPT threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with compression fitting assembly and applicable pressure piping codes. Shut off and depressurize the system completely before removing or installing any fitting. Compression fittings require proper tube preparation including squaring the tube end and deburring before insertion. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
