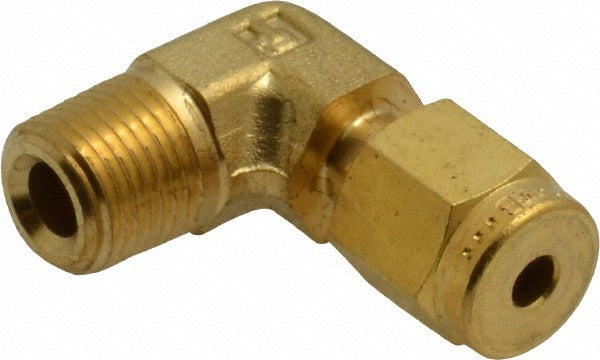

Parker 2-2 Cbz-b Compression Male Elbow 1/8 Inch Brass

Product Description

The PARKER 2-2 CBZ-B is a 90-degree compression tube male elbow fitting designed to connect tubing to a male NPT port in a single right-angle transition. Constructed from brass conforming to ASTM-B-124 and BS2872 standards, this fitting handles working pressures up to 3600 psi, making it suitable for demanding fluid and instrumentation system applications. The compression-by-MNPT end configuration allows a compression-style tube connection on one end and a 1/8-inch male pipe thread on the other. Licensed HVAC technicians, plumbers, and instrumentation technicians commonly use this fitting when routing tubing through tight spaces where a straight fitting is not practical.

This fitting is used in residential and commercial applications involving compressed air, hydraulic, and instrumentation tubing systems. The 90-degree elbow configuration is particularly useful in control panels, manifold assemblies, and equipment enclosures where tubing must change direction close to a threaded port. The brass construction and dual-standard certification make it a reliable choice for both domestic and internationally specified installations.

Key Features

• 90-degree elbow configuration for right-angle tube-to-pipe transitions
• Compression x MNPT end connections for tool-assisted, leak-resistant assembly
• Brass construction certified to ASTM-B-124 and BS2872
• Rated to 3600 psi maximum working pressure
• 1/8-inch male NPT thread for standard pipe compatibility

Compatibility

Designed as an OEM-style compression tube fitting for use in instrumentation, fluid control, and pneumatic systems requiring a 1/8-inch MNPT port connection. Cross-reference Swagelok part number B-200-2-2 for equivalent fitment.

Installation Notes

Installation should be performed by a qualified technician familiar with compression fitting assembly procedures. Depressurize and isolate the system completely before disassembling or installing any fittings. Ensure tubing is cut square, deburred, and fully inserted before tightening the compression nut to the manufacturer-specified turns past finger-tight. Thread sealant compatible with brass and the system media should be applied to the MNPT threads per applicable plumbing or instrumentation codes.
